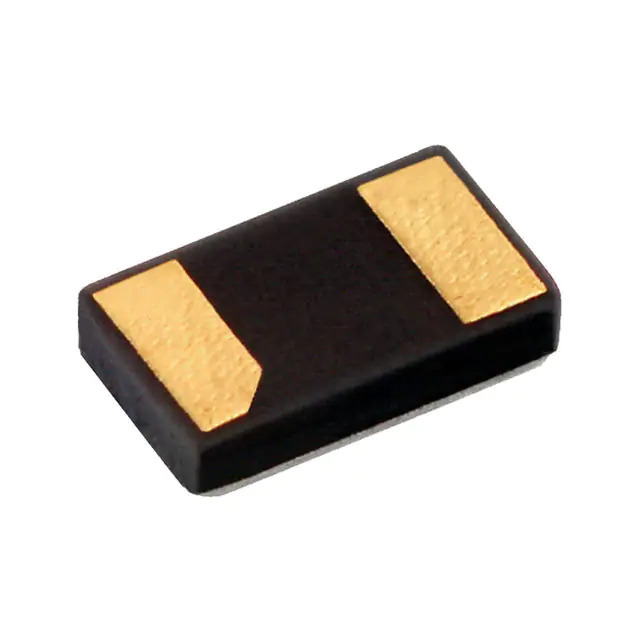

CM8V-T1A-32.768KHZ-12.5PF-20PPM-TA-QC Micro Crystal AG
Same model may have multiple batches, images only for reference.

CM8V-T1A-32.768KHZ-12.5PF-20PPM-TA-QC

Part No CM8V-T1A-32.768KHZ-12.5PF-20PPM-TA-QC
Manufacturer Micro Crystal AG
Catalog Oscillators
Description CRYSTAL 32.7680KHZ 12.5PF SMD
Datasheet
CM8V-T1A-32.768KHZ-12.5PF-20PPM-TA-QC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Micro Crystal AG
Series CM8V
Package Tape & Reel
Product Status Active
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Stability -
Frequency Tolerance ±20ppm
Load Capacitance 12.5pF
ESR (Equivalent Series Resistance) 70 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Ratings -
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height - Seated (Max) 0.024" (0.60mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0010
Win Source Part Number 1366360-CM8V-T1A-32.768KHZ-12.5PF-20PPM-TA-QC
Ultra Librarian 3D Model Ultra Librarian CM8V-T1A-32.768KHZ-12.5PF-20PPM-TA-QC CAD Model

Description

The CM8V-T1A-32.768KHZ-12.5PF-20PPM-TA-QC is a kHz crystal (tuning fork) manufactured by Micro Crystal AG.

  • Crystal Type: kHz Crystal (Tuning Fork)
  • Series: CM8V
  • Mounting Type: Surface Mount
  • Frequency: 32.768 kHz
  • Frequency Tolerance: ±20ppm
  • Size / Dimension: 0.079" L x 0.047" W (2.00mm x 1.20mm)
  • Height - Seated (Max): 0.024" (0.60mm)
  • Operating Temperature: -40°C to 85°C
  • REACH Status: Unaffected
  • ECCN: EAR99
