The MIC94062YML is a high-side load switch from Micrel (now part of Microchip Technology), designed to provide efficient power management and protection in various electronic devices. This load switch offers low on-resistance and fast switching speeds, making it suitable for applications where minimizing power loss and providing reliable power control are critical.

Applications

• Portable Devices: Used in smartphones, tablets, and wearables for power management and load switching.
• Battery-Powered Systems: Employed in battery-powered devices to disconnect loads and extend battery life.
• Power Distribution: Provides controlled power distribution in electronic systems.
• Hot-Swap Applications: Protects systems during hot-swapping of modules or peripherals.
• Solid-State Drives (SSDs): Used in SSDs to control power to different sections and protect against overcurrent.

Features

• Low On-Resistance: Minimizes voltage drop and power dissipation across the switch.
• Fast Switching Speed: Enables rapid turn-on and turn-off times for efficient power control.
• Overcurrent Protection: Protects the load and the switch from excessive current draw.
• Thermal Shutdown: Shuts down the switch if the temperature exceeds a safe limit, preventing damage.
• Reverse Blocking: Prevents current from flowing back into the source when the switch is off.

Benefits

• Improved Efficiency: Low on-resistance reduces power loss and improves overall system efficiency.
• Enhanced Protection: Overcurrent protection and thermal shutdown prevent damage to the switch and the load.
• Extended Battery Life: Minimizes power consumption in battery-powered devices.
• Increased Reliability: Protects against system failures caused by overcurrent or overheating.
• Simplified Design: Integrates protection features, simplifying circuit design and reducing component count.

Additional Details

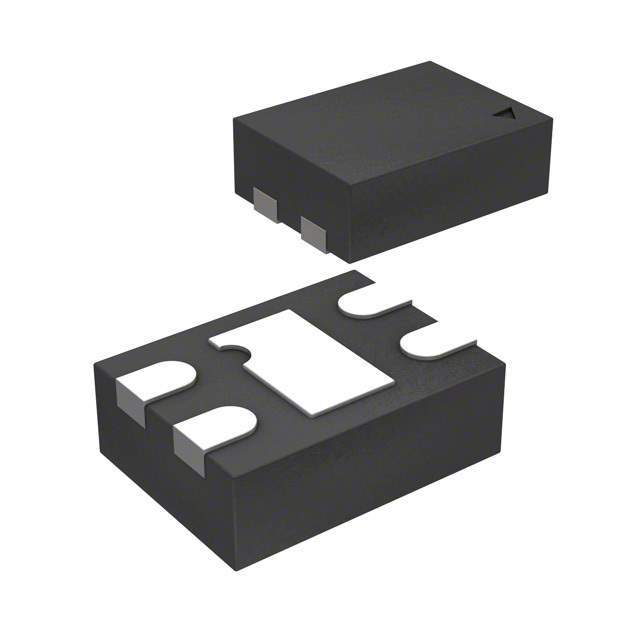

The MIC94062YML typically comes in a small surface-mount package. It is designed for low-voltage operation and is compatible with a wide range of electronic devices. Specific electrical characteristics, such as on-resistance, current limit, and operating voltage range, can be found in the product datasheet. This load switch is ideal for applications requiring efficient and reliable power management with built-in protection features.
