Same model may have multiple batches, images only for reference.

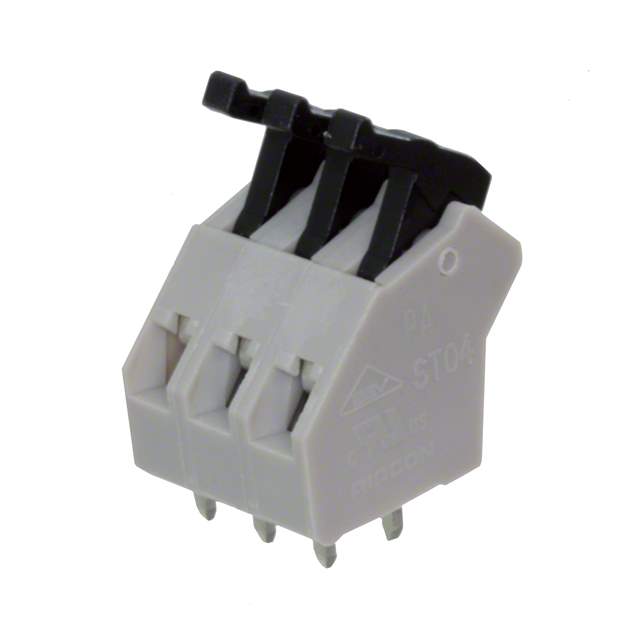

AST0450304 Real Image
Same model may have multiple batches, images only for reference.

AST0450304

Part No AST0450304
Manufacturer METZ CONNECT USA Inc.
Catalog Terminal Blocks
Description SPRING CLAMP TERMINAL BLOCK, 45 / 3 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.197" (5.00mm) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Wire to Board
Mfr METZ CONNECT USA Inc.
Package Bulk
Number of Levels 1
Positions Per Level 3
Pitch 0.197" (5.00mm)
Mating Orientation 45° (135°) Angle with Board
Current 13 A
Voltage 300 V
Wire Gauge 14-28 AWG
Mounting Type Through Hole
Wire Termination Screwless - Spring Cage, Tension Clamp
Features Lever Actuated
Color Gray
Temperature Range - Operating -40°C ~ 105°C
Housing Material Polyamide (PA46) , Nylon 4/6
Contact Material - Plating Copper Alloy - Tin Plated
Clamp Material - Plating Steel
Base Product Number AST045
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1350295-AST0450304
Ultra Librarian 3D Model Ultra Librarian AST0450304 CAD Model

Description

This wire to board terminal block has 3 positions per level and 1 level.

  • Positions per Level: 3
  • Levels: 1
  • Pitch: 0.197" (5.00mm)
  • Color: Gray
  • Actuation: Lever
  • Package: Bulk
  • Wire Gauge: 14-28 AWG
  • Housing Material: Polyamide (PA46), Nylon 4/6
  • Voltage: 300V
  • Standard Package: 250
  • Current: 13A
  • Mating Orientation: 45° (135°) angle with board
  • Wire Termination: Screwless - Spring Cage, Tension Clamp
  • Contact Material-Plating: Copper Alloy - Tin Plated
  • Clamp Material-Plating: Steel
  • Screw Thread: -
  • Mounting Type: Through Hole
  • Temperature Range: -40°C ~ 105°C
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS Code: 8536.69.4040
  • Manufacturer: METZ CONNECT USA Inc.
  • Base Product Number: AST045
