Same model may have multiple batches, images only for reference.

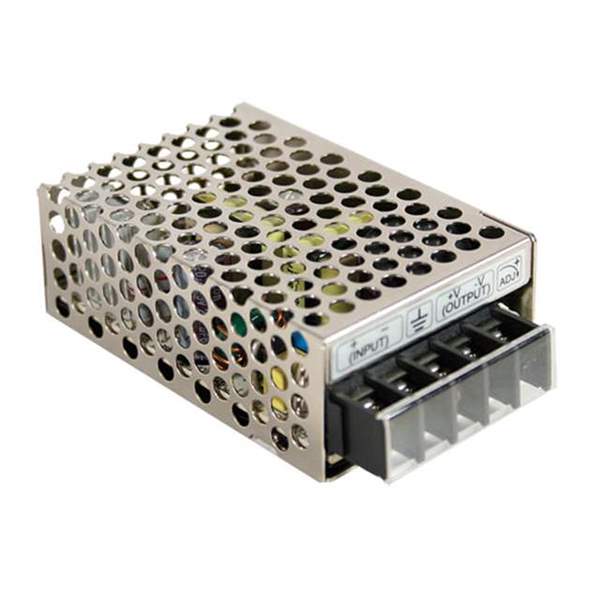

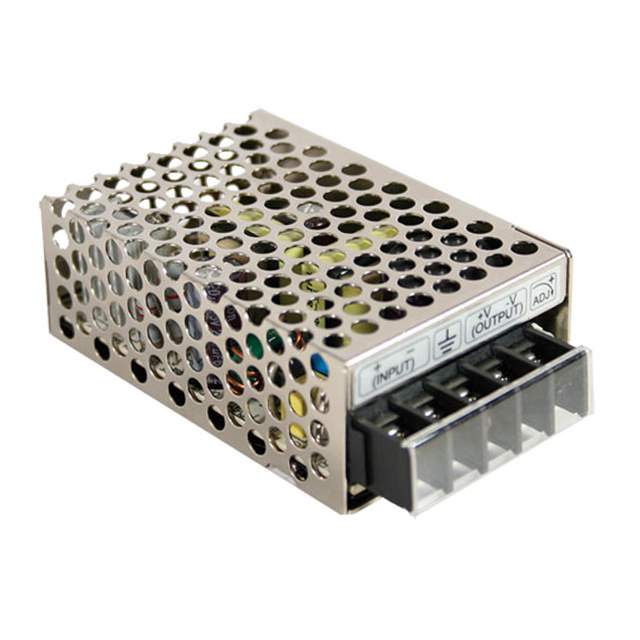

SD-15A-24

Name: SD-15A-24
Brand: Mean Well Enterprises Co., Ltd.
SKU: 1182484
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SD-15A-24
Manufacturer	Mean Well Enterprises Co., Ltd.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC/DC CONVERTER 24V 15W / Enclosed DC DC Converter 1 Output 24V 625mA 18V Input
Datasheet	SD-15A-24 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - External/Internal (Off-Board)>DC DC Converters
Mfr	MEAN WELL USA Inc.
Series	SD-15 (15W)
Package	Box
Type	Enclosed
Voltage - Input (Min)	9.2V
Voltage - Input (Max)	18V
Number of Outputs	1
Voltage - Output 1	24V
Current - Output (Max)	625mA
Power (Watts)	15W
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Efficiency	70%
Temperature Range - Operating	-10°C ~ 60°C (With Derating)
Mounting Type	Chassis Mount
Dimension	3.07" L x 2.01" W x 1.10" H (78.0mm x 51.0mm x 28.0mm)
Approval Agency	CE
Base Product Number	SD-15A
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	SD-15A-24MW-ND,1866-1056,SD-15A-24MW
Standard Package	60
Win Source Part Number	1182484-SD-15A-24
Ultra Librarian 3D Model	Ultra Librarian SD-15A-24 CAD Model

Alternative Products

Description

The SD-15 (15W) enclosed DC DC converter is a power supply device used in ITE (Commercial) applications.

Application: ITE (Commercial)
Voltage Isolation: 1.5 kV
Maximum Output Current: 625mA
Voltage Input Range: 9.2V to 18V
Voltage Output: 24V
Efficiency: 70%
Mounting Type: Chassis Mount
Operating Temperature: -10°C to 60°C (With Derating)
Dimensions: 3.07" L x 2.01" W x 1.10" H (78.0mm x 51.0mm x 28.0mm)
