Same model may have multiple batches, images only for reference.

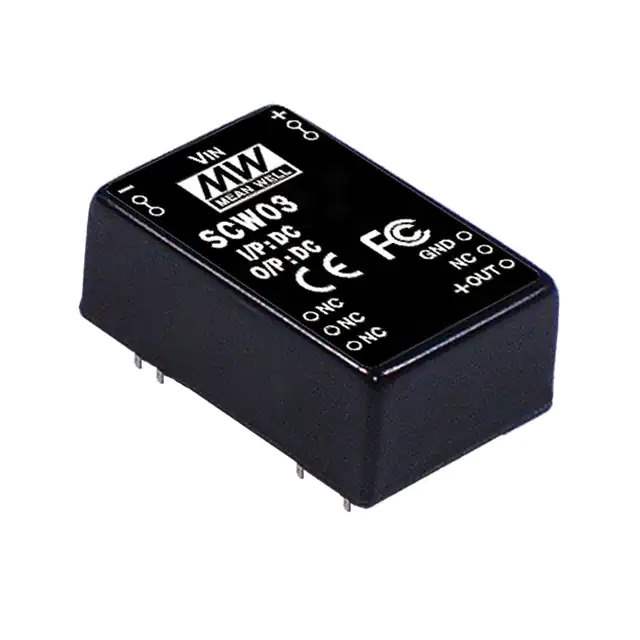

SCW03B-12 Real Image
Same model may have multiple batches, images only for reference.

SCW03B-12

Part No SCW03B-12
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 3W
Datasheet
SCW03B-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Mean Well Enterprises Co., Ltd.
Series SCW03 (3W)
Package Tube
Product Status Obsolete
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Current - Output (Max) 250mA
Power (Watts) 3 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Features OCP, SCP
Temperature Range - Operating -40°C ~ 71°C (With Derating)
Efficiency 80%
Mounting Type Through Hole
Package / Case 24-DIP Module, 8 Leads
Size / Dimension 1.25" L x 0.80" W x 0.48" H (31.8mm x 20.3mm x 12.2mm)
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 664575-SCW03B-12
Ultra Librarian 3D Model Ultra Librarian SCW03B-12 CAD Model

Description

The SCW03B-12 is a 3W isolated DC-DC converter from the SCW03 series.

  • Mount: board mount
  • Package: tube
  • Voltage Input: 18V to 36V
  • Voltage Output: 12V
  • Applications: ITE (Commercial)
  • Max Output Current: 250mA
  • Efficiency: 80%
  • Dimensions: 1.25" L x 0.80" W x 0.48" H
  • Protection: Overcurrent Protection (OCP) and Short Circuit Protection (SCP)
  • Operating Temp: -40°C to 71°C (with derating)
  • Certifications: CB, CE, cURus, and TUV
