Same model may have multiple batches, images only for reference.

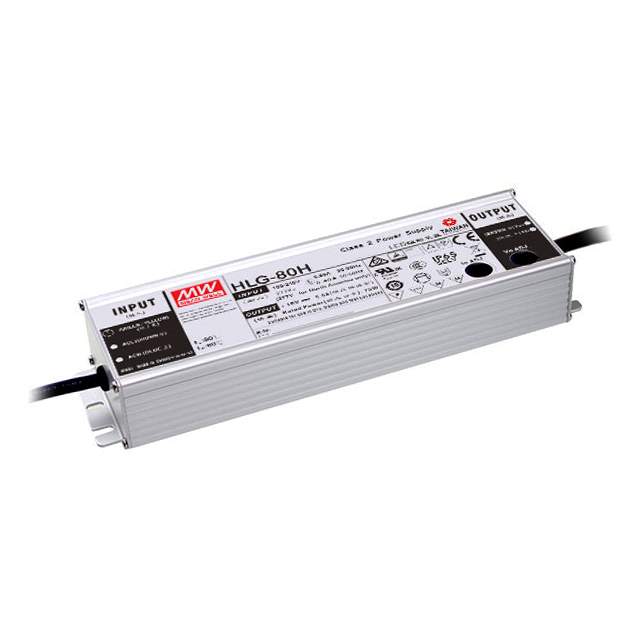

HLG-80H-42A Real Image
Same model may have multiple batches, images only for reference.

HLG-80H-42A

Part No HLG-80H-42A
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Board Mount LED Drivers
Description LED DVR CC/CV AC/DC 38-46V 1.95A / 80W Single Output Switching Power Supply
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer MEAN WELL USA Inc.
Type Constant Current, Voltage
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 90VAC
Maximum Input Voltage 305VAC
Voltage - Output 38 ~ 46V
Current - Output (Maximum) 1.95A
Power (Watts) 82W
Voltage - Isolation 3.75kV
Features OCP, OTP, OVP, SCP
Ratings IP65
Temperature Range - Operating -40°C ~ 80°C
Efficiency 91%
Termination Style Wire Leads
Dimension 6.76" L x 2.42" W x 1.53" H (171.8mm x 61.5mm x 38.8mm)
Mounting Style Chassis Mount
Approvals CB, CCC, CE, cULus, cURus, PSE, RCM, TUV, UL
Manufacturer Pack Quantity 16
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809884-HLG-80H-42A
Ultra Librarian 3D Model Ultra Librarian HLG-80H-42A CAD Model

Description

The MEAN WELL USA Inc. HLG-80H-42A is a constant current, voltage AC-DC converter.

  • Power Rating: 82W
  • Efficiency: 91%
  • Mounting Style: Chassis Mount
  • Termination Style: Wire Leads
  • Voltage Output Range: 38-46V
  • Maximum Input Voltage: 305VAC
  • IP Rating: IP65
  • Approvals: CB, CCC, CE, cULus, cURus, PSE, RCM, TUV
  • Features: OCP, OTP, OVP, SCP
  • Temperature Range: -40°C to 80°C
  • Manufacturer Pack Quantity: 16
  • MSL Level: 1 (unlimited)
