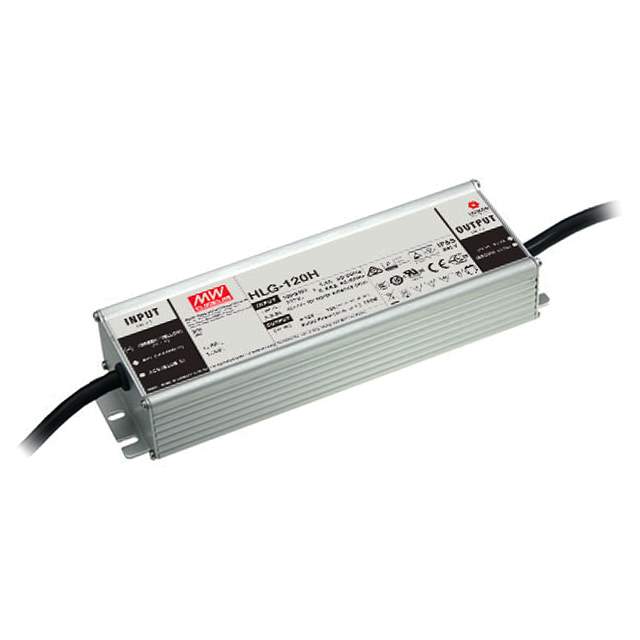

HLG-120H-42A Real Image
Same model may have multiple batches, images only for reference.

HLG-120H-42A

Part No HLG-120H-42A
Manufacturer Mean Well Enterprises Co., Ltd.
Catalog Board Mount LED Drivers
Description LED DRVR CC/CV AC/DC 38-46V 2.9A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer MEAN WELL USA Inc.
Type Constant Current, Voltage
Topology AC DC Converter
Number of Outputs 1
Voltage - Input (Min) 90VAC
Maximum Input Voltage 305VAC
Voltage - Output 38 ~ 46V
Current - Output (Maximum) 2.9A
Power (Watts) 122W
Voltage - Isolation 3.75kV
Features OCP, OTP, OVP, SCP
Ratings IP65
Temperature Range - Operating -40°C ~ 80°C
Efficiency 93%
Termination Style Wire Leads
Dimension 7.72" L x 2.68" W x 1.53" H (196.0mm x 68.0mm x 38.8mm)
Mounting Style Chassis Mount
Approvals CB, CCC, CE, cURus, ENEC, PSE, RCM, TUV
Manufacturer Pack Quantity 12
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812520-HLG-120H-42A
Ultra Librarian 3D Model Ultra Librarian HLG-120H-42A CAD Model

Description

The MEAN WELL USA Inc. HLG-120H-42A is a constant current and voltage AC-DC converter that comes in a chassis mount package.

  • Power Rating: 122W
  • Output Voltage Range: 38 ~ 46V
  • Maximum Input Voltage: 305VAC
  • Isolation Voltage: 3.75kV
  • Output Type: Single
  • Maximum Output Current: 2.9A
  • Features: OCP, OTP, OVP, SCP
  • Approvals: CB, CCC, CE, cURus, ENEC, PSE, RCM, TUV
  • Efficiency: 93%
  • Operating Temperature: -40°C to 80°C
  • Package Quantity: 12 units
