Maxim Integrated MAX6423US29+T Microprocessor Supervisory Circuit

The Maxim Integrated MAX6423US29+T is a compact, highly-reliable microprocessor (µP) supervisory circuit designed to monitor power supplies in µP and digital systems. It provides a significant level of protection by ensuring that the µP boots up in a predictable state every time. This supervisory circuit is ideal for use in a wide range of applications, including computers, controllers, intelligent instruments, and portable battery-powered electronics.

One of the key features of the MAX6423US29+T is its ability to assert a reset signal whenever the VCC supply voltage falls below a preset threshold, 2.93V for this specific model. The reset output remains asserted for a minimum of 140ms after VCC has risen above the reset threshold, ensuring that the µP has adequate time to stabilize and start up correctly. This feature helps to prevent system errors and malfunctions that could occur due to improper power-up sequences.

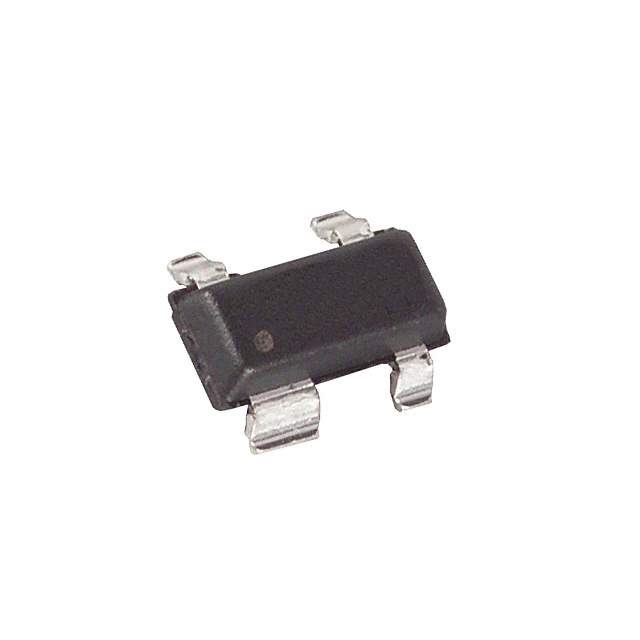

The MAX6423US29+T comes in a compact SOT-143 package, making it convenient for use in space-constrained applications. It operates over a wide temperature range of -40°C to +125°C, which allows for deployment in various environmental conditions. The device also features low supply current requirements, which is beneficial for battery-powered devices where power efficiency is critical.

Another advantage of this supervisory circuit is its ability to provide a manual reset input. This allows for an external signal to trigger a reset, offering an additional layer of system control and diagnostic capability. Furthermore, the MAX6423US29+T includes a debounced manual reset input, which improves reliability by filtering out any spurious noise that could inadvertently cause a system reset.

Overall, the Maxim Integrated MAX6423US29+T is an essential component for ensuring the reliable operation of microprocessor-based systems. Its combination of features, including precise voltage monitoring, manual reset capability, low power consumption, and small footprint, make it a smart choice for designers looking to enhance system stability and robustness.
