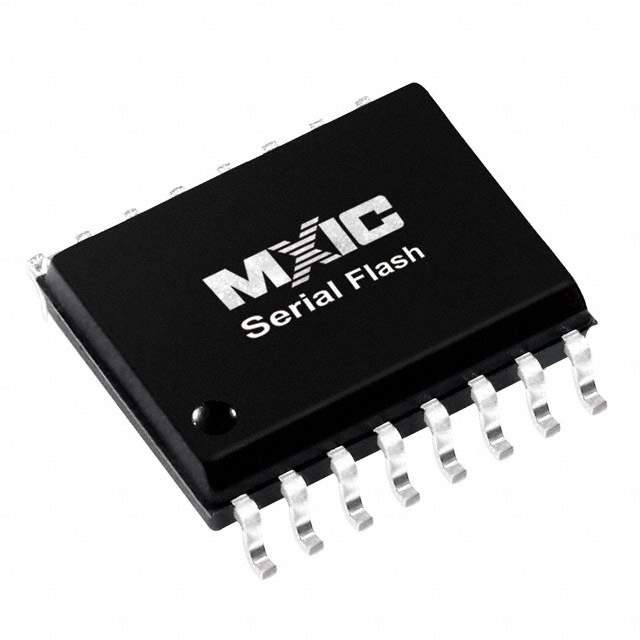

The MX25L6435EMI-10G is a 64 Mbit serial NOR flash memory device manufactured by Macronix. This device is designed for a wide range of embedded applications requiring non-volatile storage.

Applications:

• BIOS Storage: Used to store the BIOS (Basic Input/Output System) firmware in PCs and laptops.
• Embedded Systems: Integrated into various embedded systems such as networking equipment, industrial control systems, and consumer electronics for storing firmware and configuration data.
• Networking Equipment: Stores boot code and configuration settings in routers, switches, and other networking devices.
• Gaming Consoles: Used for storing game code, system software, and configuration settings.
• Automotive Electronics: Stores firmware for automotive control units (ECUs) and infotainment systems.

Features:

• 64 Mbit (8MB) Capacity: Provides ample storage space for firmware, configuration data, and code storage.
• Serial NOR Flash: Uses a serial interface (SPI) for communication, reducing pin count and simplifying board layout.
• SPI Interface: Supports standard SPI (Serial Peripheral Interface) protocols for easy interfacing with microcontrollers and processors.
• Single Power Supply: Operates from a single 3.0V power supply, simplifying power management.
• Page Program: Supports page program mode for faster write operations.
• Sector Erase: Allows for erasing individual sectors, providing flexibility in data management.
• Low Power Consumption: Designed for low power consumption, making it suitable for battery-powered applications.

Benefits:

• Compact Size: Small footprint enables use in space-constrained applications.
• Fast Read Speeds: High-speed read access ensures quick boot-up and execution times.
• High Reliability: Provides reliable storage for critical data in harsh environments.
• Simplified Interface: SPI interface simplifies integration with microcontrollers and processors.
• Low Power: Low power consumption extends battery life in portable devices.

Additional Details:

The MX25L6435EMI-10G supports advanced features such as deep power-down mode for further power saving and software write protection to prevent accidental data corruption. It has an extended operating temperature range, allowing operation in industrial environments. The device also supports Serial Flash Discoverable Parameters (SFDP), enabling host systems to automatically identify device characteristics and configurations.
