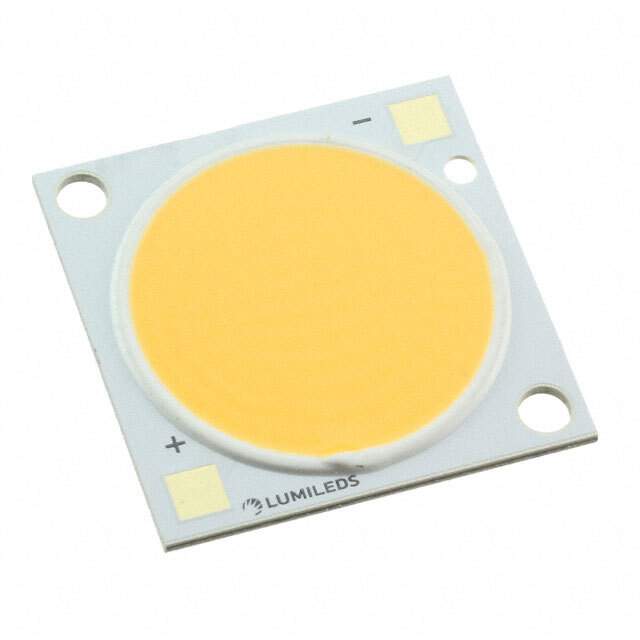

L2C2-40801203E0900 Real Image
Same model may have multiple batches, images only for reference.

L2C2-40801203E0900

Part No L2C2-40801203E0900
Manufacturer Lumileds
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB 4000K NEU WHT 80CRI SMD / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Neutral Rectangle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Lumileds
Series LUXEON CoB Core Range
Package Tube
Product Status Obsolete
Type Chip On Board (COB)
Color White, Neutral
CCT (K) 4000K 3-Step MacAdam Ellipse
Configuration Rectangle
Luminous Flux @ Current/Temperature 1451lm (Typ)
Current - Test 300mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 34.5V
Lumens/Watt @ Current - Test 140 lm/W
Current - Max 600mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 16.00mm L x 19.00mm W
Height 1.50mm
Light Emitting Surface (LES) 9.00mm Dia
Lens Type Flat
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 1416-1665-5,L2C2-40801203E0900-ND
Standard Package 100
Win Source Part Number 1068365-L2C2-40801203E0900
Ultra Librarian 3D Model Ultra Librarian L2C2-40801203E0900 CAD Model

Description

The Lumileds LUXEON CoB Core Range is a chip on board (COB) LED lighting component that offers high efficiency and output.

  • Maximum Current: 600mA
  • Viewing Angle: 115 degrees
  • Voltage Forward: 34.5V
  • Color Temperature: 4000K 3-Step MacAdam Ellipse
  • Lumens per Watt @ Current Test: 140
  • Color Rendering Index (CRI): 80
  • Light Emitting Surface (LES): 9.00mm diameter
  • Dimension: 16.00mm L x 19.00mm W
  • MSL Level: 1 (unlimited)
  • HTSUS: 8541.41.0000
  • Product Status: Obsolete
