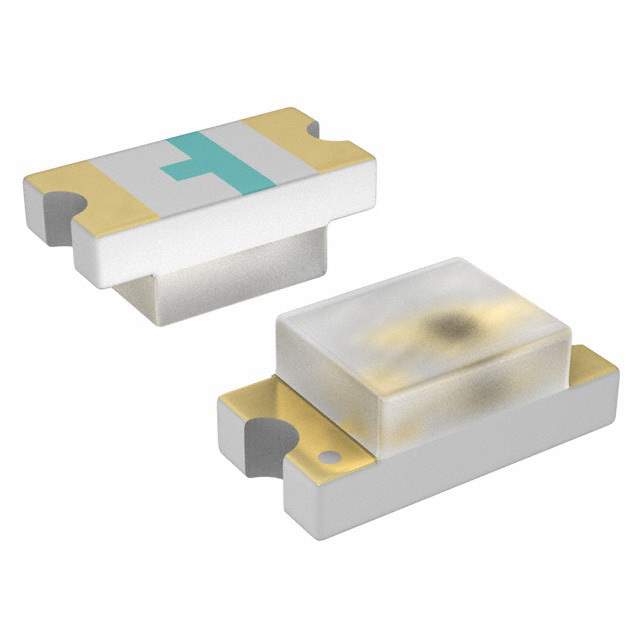

Same model may have multiple batches, images only for reference.

SML-LX0603GW-TR

Name: SML-LX0603GW-TR
Brand: Lumex Opto/Components Inc.
SKU: 794767
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SML-LX0603GW-TR
Manufacturer	Lumex Opto/Components Inc.
Catalog	LED Indication - Discrete
Description	LED GREEN DIFFUSED 0603 SMD
Datasheet	SML-LX0603GW-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Optoelectronics
Manufacturer	Lumex Opto/Components Inc.
Packaging	Reel package
Color	Green
Lens Color	White
Lens Transparency	Diffused
Millicandela Rating	18mcd
Lens Style/Size	Rectangle with Flat Top, 1.00mm x 0.80mm
Voltage - Forward (Vf) (Typ)	2.2V
Current - Test	20mA
Viewing Angle	160°
Mounting	SMD
Wavelength - Peak	565nm
Package	0603
Dimension	1.60mm L x 0.80mm W
Height (Maximum)	0.60mm
Win Source Part Number	794767-SML-LX0603GW-TR
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	SML-LX0603GW-TR
Introduction Date	November 06, 2000
ECCN	EAR99
Country of Origin	China, China
Halogen Free	Compliant
Estimated EOL Date	2022
Ultra Librarian 3D Model	Ultra Librarian SML-LX0603GW-TR CAD Model

Alternative Products

Description

The Lumex Opto/Components Inc. It is a surface mount device with a balance supply and demand status.

Family: SML-LX0603GW-TR
Introduction Date: November 06, 2000
ECCN: EAR99
Made in: China
Estimated EOL Date: 2022
Package: Reel
Color: Green
Viewing Angle: 160 degrees
Millicandela Rating: 18mcd
Lens Style/Size: Rectangle, Flat Top, 1.00mm x 0.80mm
Voltage-Forward (Vf): 2.2V
Current-Test: 20mA
Wavelength-Peak: 565nm
Dimension: 1.60mm L x 0.80mm W
Height (Maximum): 0.60mm
Cross-Reference: LTL29S-N2Q1-25-0-10-R18-Z, LGL29K-F2J1-24-0-2-R18-Z, LPL296-J2L2-25-0-20-R18-Z
