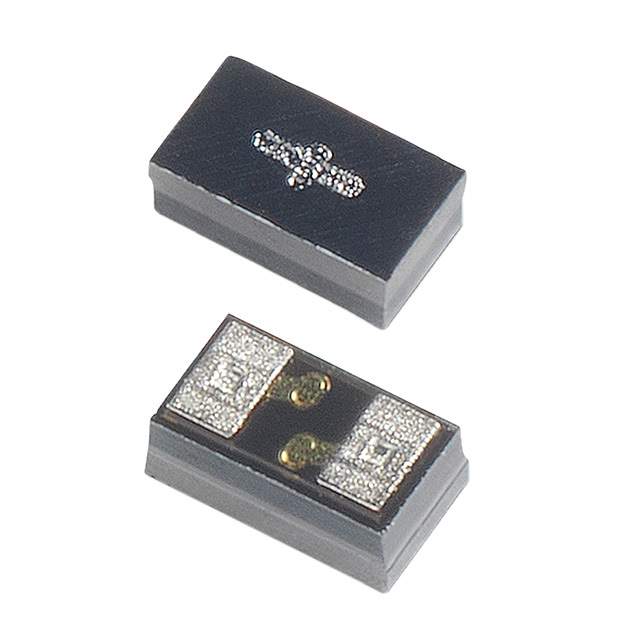

SP1312-01WTG Real Image
Same model may have multiple batches, images only for reference.

SP1312-01WTG

Part No SP1312-01WTG
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 12VWM 27VC 01005 / 27V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount 01005, Flip Chip
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series SP1312, SPA®
Package Tape & Reel
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 12V (Max)
Voltage - Breakdown (Min) 13V
Voltage - Clamping (Max) @ Ipp 27V
Current - Peak Pulse (10/1000µs) 3A (8/20µs)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)
Package / Case 01005 (0402 Metric)
Supplier Device Package 01005, Flip Chip
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names -SP1312-01WTG,F11703CT,F11703TR,F11703DKR
Standard Package 15,000
Win Source Part Number 997231-SP1312-01WTG
Ultra Librarian 3D Model Ultra Librarian SP1312-01WTG CAD Model

Description

The Littelfuse Inc. 997231-SP1312-01WTG is a zener electronic component with a reverse standoff voltage of 12V (maximum) and a breakdown voltage (minimum) of 13V.

  • Reverse Standoff Voltage: 12V (maximum)
  • Breakdown Voltage: 13V (minimum)
  • Voltage Clamping: 27V @ Ipp
  • Current Peak Pulse: 3A (8/20µs)
  • Package Size: 01005 (0402 Metric)
