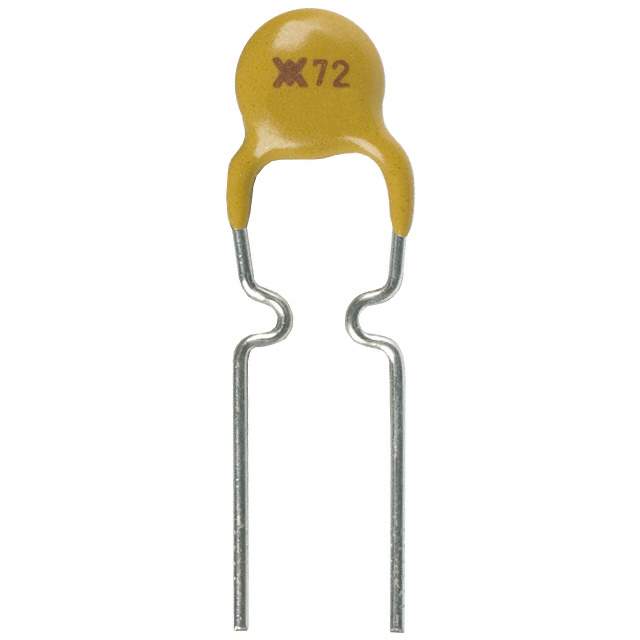

RXE025 Real Image
Same model may have multiple batches, images only for reference.

RXE025

Part No RXE025
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 72V 250MA RADIAL / Polymeric PTC Resettable Fuse 72V 250 mA Ih Through Hole Radial, Disc
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>PTC Resettable Fuses
Mfr Littelfuse Inc.
Series PolySwitch®, RXE
Package Bulk
Product Status Obsolete
Type Polymeric
Voltage - Max 72V
Current - Max 40 A
Current - Hold (Ih) (Max) 250 mA
Current - Trip (It) 500 mA
Time to Trip 2.5 s
Resistance - Initial (Ri) (Min) 1.25 Ohms
Resistance - Post Trip (R1) (Max) 3 Ohms
Mounting Type Through Hole
Package / Case Radial, Disc
Dimension 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
Height - Seated (Max) 0.500" (12.70mm)
Lead Spacing 0.199" (5.05mm)
Approval Agency CSA, TUV, UL
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Standard Package 500
Win Source Part Number 995396-RXE025
Ultra Librarian 3D Model Ultra Librarian RXE025 CAD Model

Description

This electronic component is a PTC resettable fuse from the PolySwitch RXE series, manufactured by Littelfuse Inc.

  • Win Source Part Number: 995396-RXE025
  • Mounting Type: Through Hole
  • Maximum Voltage Rating: 72V
  • Maximum Current Rating: 40 A
  • Current Hold (Ih): 250 mA
  • Current Trip (It): 500 mA
  • Time to Trip: 2.5 s
  • Resistance Initial (Ri): 1.25 Ohms
  • Resistance Post Trip (R1): 3 Ohms
  • Dimension: 0.291" Dia x 0.118" T (7.40mm x 3.00mm)
  • Height Seated (Max): 0.500" (12.70mm)
  • Lead Spacing: 0.199" (5.05mm)
  • Product Status: Obsolete
  • RoHS Status: Non-Compliant
