Same model may have multiple batches, images only for reference.

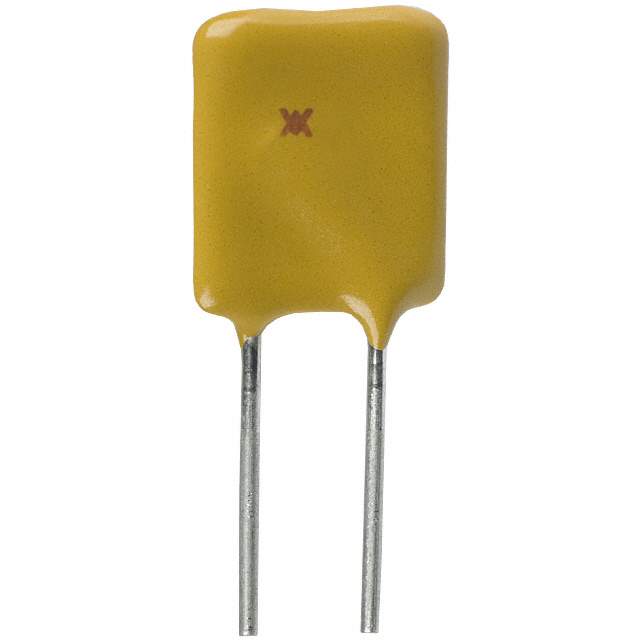

RUEF800-2 Real Image
Same model may have multiple batches, images only for reference.

RUEF800-2

Part No RUEF800-2
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 8A / PTC Resettable Fuse 8A(hold) 16A(trip) 30V 100A 4W 18.8s 0.005Ohm Radial 21.6 X 3 X 28.4mm T/R
Datasheet
RUEF800-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series PolySwitch, RUEF
Packaging Reel package
Type Polymeric
Voltage - Max 30V
Current - Max 100A
Current - Hold (Ih) (Maximum) 8A
Current - Trip (It) 16A
Time to Trip 18.8s
Resistance - Initial (Ri) (Minimum) 5 mOhm
Resistance - Post Trip (R1) (Maximum) 20 mOhm
Operating Temperature Range -40°C ~ 85°C
Mounting Style Through Hole
Package Radial, Disc
Dimension 0.850" L x 0.118" W (21.60mm x 3.00mm)
Height - Seated (Maximum) 1.118" (28.40mm)
Lead Spacing 0.400" (10.15mm)
Approvals CQC, CSA, TUV, UL
Win Source Part Number 793455-RUEF800-2
Popularity Medium
Supply and Demand Status Limited
Family Name RUEF
Introduction Date November 09, 2015
ECCN EAR99
Country of Origin China
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian RUEF800-2 CAD Model

Description

The Littelfuse Inc. RUEF800-2 PolySwitch is a polymeric, through hole circuit protection device with a voltage rating of 30V.

  • Voltage: 30V
  • Current: 100A
  • Current Trip (It): 16A
  • Time to Trip: 18.8s
  • Resistance (Initial): 5 mOhm
  • Resistance (Post Trip): 20 mOhm
  • Operating Temperature: -40°C to 85°C
  • Approvals: CQC, CSA, TUV, UL
  • Packaging: Reel
