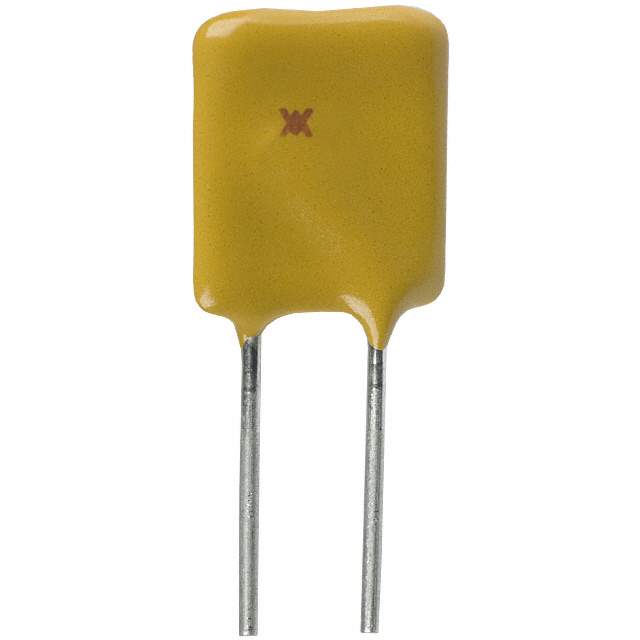

RHEF1100 Real Image
Same model may have multiple batches, images only for reference.

RHEF1100

Part No RHEF1100
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description POLYSWITCH PTC RESET 11A HOLD / PTC Resettable Fuse 11A(hold) 20A(trip) 16VDC 100A 5.5W 11s 0.0055Ohm Radial 21 X 3 X 26.1mm Bulk
Datasheet
RHEF1100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series PolySwitch, RHEF
Packaging Bulk
Type Polymeric
Voltage - Max 16V
Current - Max 100A
Current - Hold (Ih) (Maximum) 11A
Current - Trip (It) 20A
Time to Trip 11s
Resistance - Initial (Ri) (Minimum) 5.5 mOhm
Resistance - Post Trip (R1) (Maximum) 13 mOhm
Operating Temperature Range -40°C ~ 125°C
Mounting Style Through Hole
Package Radial, Disc
Dimension 0.827" L x 0.118" W (21.00mm x 3.00mm)
Height - Seated (Maximum) 1.028" (26.10mm)
Lead Spacing 0.400" (10.15mm)
Approvals CSA, TUV, UL
Win Source Part Number 793192-RHEF1100
Popularity Medium
Supply and Demand Status Limited
Introduction Date November 09, 2015
ECCN EAR99
Country of Origin China
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian RHEF1100 CAD Model

Description

The RHEF1100 is an electronic component manufactured by Littelfuse Inc.

  • Maximum Voltage: 16V
  • Maximum Current: 100A
  • Approvals: CSA, TUV, and UL
