Same model may have multiple batches, images only for reference.

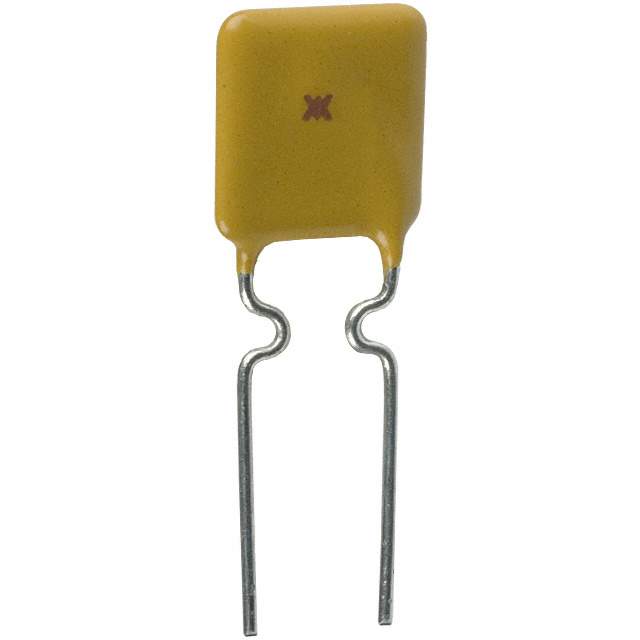

RF2624-000 Real Image
Same model may have multiple batches, images only for reference.

RF2624-000

Part No RF2624-000
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC Resettable Fuse 1.1A(hold) 2.2A(trip) 30V 100A 0.7W 6.6s 0.07Ohm Radial 7.4 X 3 X 14.2mm Bag
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Case / Package Radial
Height - Seated (Max) 14.1986 mm
Hold Current 1.1 A
Lead Pitch 5.0546 mm
Max Current Rating 100 A
Mount Through Hole
RoHS Compliant
Time to Trip 6.6 s
Trip Current 2.2 A
Width 2.9972 mm
Win Source Part Number 986429-RF2624-000
Categories PTC Resettable Fuses
Manufacturer Littelfuse Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian RF2624-000 CAD Model

Description

The Littelfuse Inc. 986429-RF2624-000 is a PTC resettable fuse that comes with a hold current of 1.1A and a trip current of 2.2A.

  • Hold Current: 1.1A
  • Trip Current: 2.2A
  • Height: 14.1986mm
  • Width: 2.9972mm
  • Time to Trip: 6.6s
  • Lead Pitch: 5.0546mm
  • Mounting: Through-Hole
  • Maximum Current Rating: 100A
  • RoHS Compliant: Yes
  • Temperature Range: -40°C to 85°C
  • Case/Package: Radial
