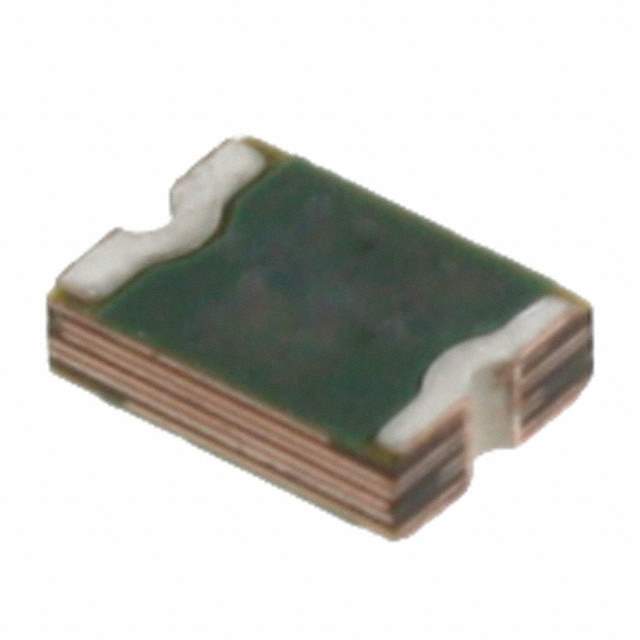

RF1184-000 Real Image
Same model may have multiple batches, images only for reference.

RF1184-000

Part No RF1184-000
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC Resettable Fuse 2.6A(hold) 5A(trip) 6V 100A 1W 0.015Ohm SMD Solder Pad 1812 T/R Automotive
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Case Code (Imperial) 1812
Mounting SMD (SMT)
Case / Package 4532
Hold Current 2.6 A
Length 4.5974 mm
Max Current Rating 100 A
Mount Surface Mount
RoHS Compliant
Thickness 1.524 mm
Time to Trip 5 s
Trip Current 5 A
Width 3.2512 mm
Win Source Part Number 996346-RF1184-000
Categories PTC Resettable Fuses
Manufacturer Littelfuse Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian RF1184-000 CAD Model

Description

The 996346-RF1184-000 PTC resettable fuse from Littelfuse Inc. is a surface mount device with a 4532 package.

  • Package: 4532
  • Mount: Surface
  • Hold Current: 2.6 A
  • Trip Current: 5 A
  • Time to Trip: 5 s
  • Thickness: 1.524 mm
  • Length: 4.5974 mm
  • Width: 3.2512 mm
  • Popularity: Low
  • Percentage: 48 pct
  • Supply and Demand Status: Shortage
  • RoHS Compliant: Yes
