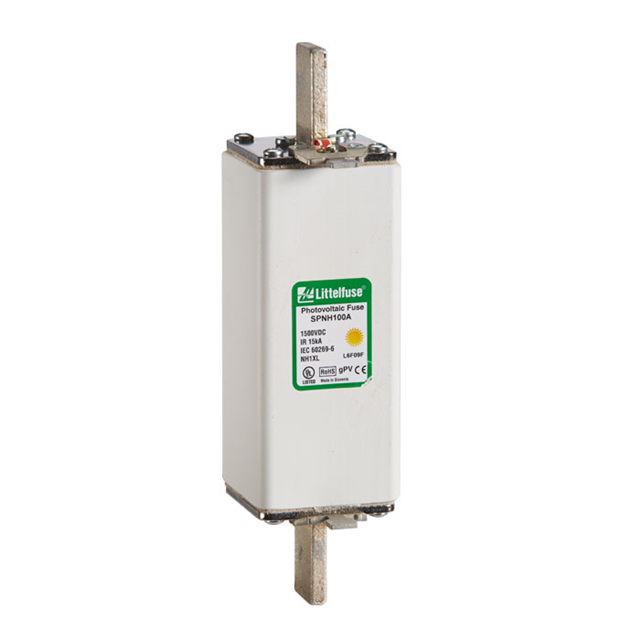

SPNH100.XXDL Real Image
Same model may have multiple batches, images only for reference.

SPNH100.XXDL

Part No SPNH100.XXDL
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Datasheet
SPNH100.XXDL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series POWR-GARD® SPNH
Mounting Type Bolt Mount
Fuse Type Rectangular
Current Rating (Amps) 100A
Voltage Rating - DC 1.5 kV
Response Time Fast Blow
Applications Solar (Photovoltaic)
Approval Agency CE, gPV, IEC, UL
Breaking Capacity @ Rated Voltage 30kA
Package / Case Rectangular, Blade
Dimension 5.165" L x 2.008" W x 2.008" H (131.20mm x 51.00mm x 51.00mm)
Melting I2t 10000
DC Cold Resistance 0.00147 Ohms
Other Names 18-SPNH100.XXDL,-1024-SPNH100.XXDL
Standard Package 1
MSL Level 1 (Unlimited)
Win Source Part Number 1302309-SPNH100.XXDL
Ultra Librarian 3D Model Ultra Librarian SPNH100.XXDL CAD Model

Description

The Littelfuse Inc. POWR-GARD® SPNH 1302309-SPNH100.XXDL is an electrical, specialty fuse for solar (photovoltaic) applications.

  • Response Time: Fast blow
  • Breaking Capacity: 30kA @ rated voltage
  • Melting I2t: 10000
  • DC Cold Resistance: 0.00147 Ohms
  • Current Rating: 100A
  • Fuse Type: Rectangular fuse type
  • Voltage Rating: 1.5 kV
  • Mounting: Bolt mount
  • Package/Case: Rectangular, blade package/case
