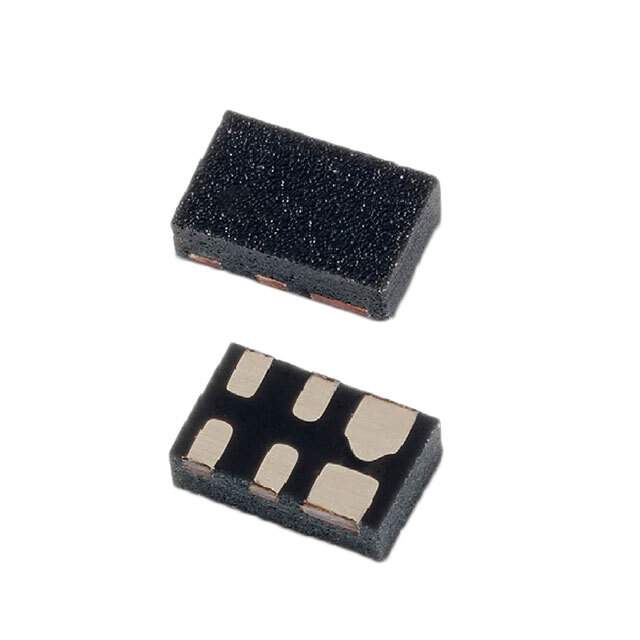

Same model may have multiple batches, images only for reference.

SP3401-02UTG

Name: SP3401-02UTG
Brand: Littelfuse Inc.
SKU: 1300838
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SP3401-02UTG
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Littelfuse Inc.
Series	Automotive, AEC-Q101
Type	Zener
Unidirectional Channels	2
Voltage - Reverse Standoff (Typ)	3.3V (Max)
Voltage - Breakdown (Min)	6.5V
Voltage - Clamping (Max) @ Ipp	9V
Current - Peak Pulse (10/1000µs)	10A (8/20µs)
Power Line Protection	No
Applications	Ethernet, USB 3.1
Capacitance @ Frequency	0.8pF @ 1MHz
Temperature Range - Operating	-40°C ~ 125°C (TA)
Mounting	SMD (SMT)
Package / Case	6-UFDFN
Supplier Device Package	6-µDFN (1.6x1)
Other Names	18-SP3401-02UTGDKR,18-SP3401-02UTGCT,18-SP3401-02UTGTR,-1024-SP3401-02UTGCT
Standard Package	3,000
MSL Level	1 (Unlimited)
ECCN	EAR99
Win Source Part Number	1300838-SP3401-02UTG
Ultra Librarian 3D Model	Ultra Librarian SP3401-02UTG CAD Model

Alternative Products

Description

The Littelfuse Inc. SP3401-02UTG is a Zener type of electronic component that is used in circuit protection and TVS-diodes.

Series: Automotive, AEC-Q101
Applications: Ethernet and USB 3.1
Voltage-Reverse Standoff (Typ): 3.3V (Max)
Voltage-Breakdown (Min): 6.5V
Voltage-Clamping (Max) @ Ipp: 9V
Capacitance @ Frequency: 0.8pF @ 1MHz
Current-Peak Pulse (10/1000µs): 10A (8/20μs)
Mounting: SMD (SMT)
Channel: Unidirectional with two bidirectional channels
Standard Package: 3,000
Supplier Device Package: 6-μDFN (1.6x1)
Operating Temperature Range: -40°C to 125°C
