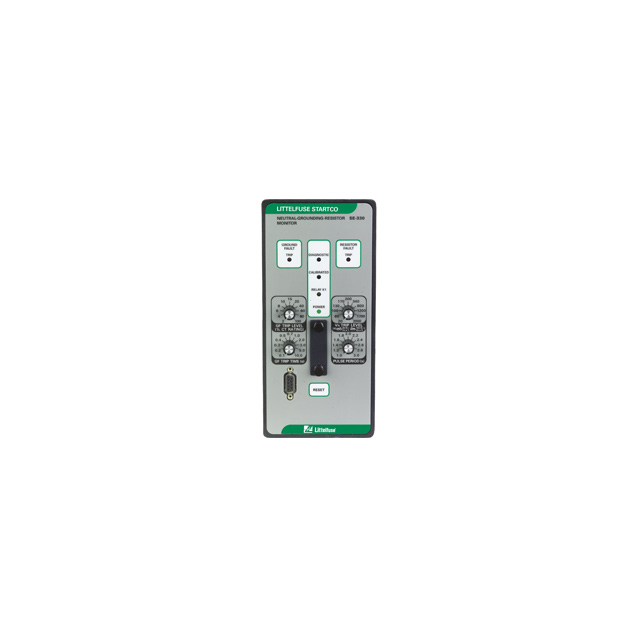

SE-330HV-25-01 Real Image
Same model may have multiple batches, images only for reference.

SE-330HV-25-01

Part No SE-330HV-25-01
Manufacturer Littelfuse Inc.
Catalog Protection Relays & Systems
Description MONITOR NGR HV 48V DUAL SC FBR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Industrial Automation and Controls>Protection Relays & Systems
Mfr Littelfuse Inc.
Series SE-330HV
Package Bulk
Function Ground Fault
Voltage - Supply 48VDC
Trip Range 20 ~ 10000VAC
Delay Time 0.1 ~ 10s
Mounting Type Panel Mount
Termination Style Screw Terminal
Features Harmonic Filtering, Manual Reset
Temperature Range - Operating -40°C ~ 60°C
Other Names -1024-SE-330HV-25-01
Standard Package 1
RoHS Status RoHS non-compliant
MSL Level Not Applicable
HTSUS 0000.00.0000
Win Source Part Number 1272394-SE-330HV-25-01
Ultra Librarian 3D Model Ultra Librarian SE-330HV-25-01 CAD Model

Description

The Littelfuse Inc. SE-330HV-25-01 is a ground fault protection relay that features harmonic filtering and manual reset.

  • Trip Range: 20 ~ 10000VAC
  • Delay Time: 0.1 ~ 10s
  • Voltage Supply: 48VDC
  • Mounting Type: Panel mount
  • Temperature Range: -40°C ~ 60°C
  • Popularity: Medium
  • Package Type: Bulk
  • Standard Package: 1 unit
  • RoHS: Not RoHS compliant
