Same model may have multiple batches, images only for reference.

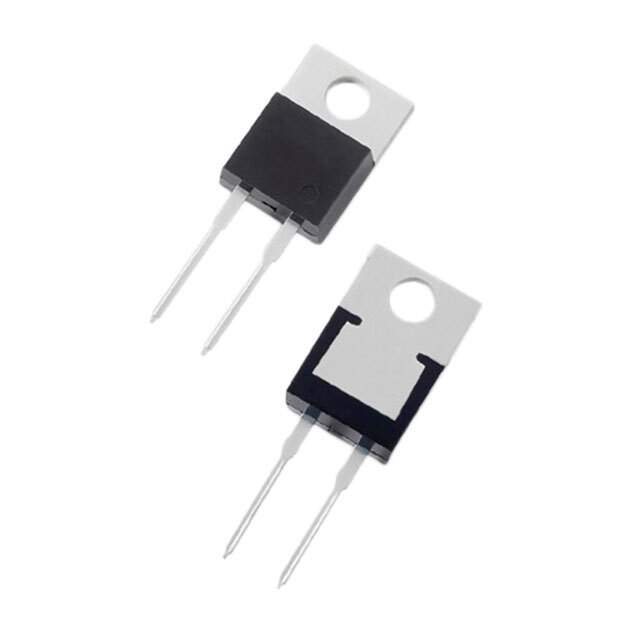

LFUSCD15120A Real Image
Same model may have multiple batches, images only for reference.

LFUSCD15120A

Part No LFUSCD15120A
Manufacturer Littelfuse Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SC SCHOTKY 1200V 15A TO220 / Diode Silicon Carbide Schottky 1200 V 15A (DC) Through Hole TO-220AC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Littelfuse Inc.
Package Tube
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) 15A (DC)
Voltage - Forward (Vf) (Max) @ If 1.7 V @ 15 A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Current - Reverse Leakage @ Vr 375 µA @ 1200 V
Capacitance @ Vr, F 750pF @ 1V, 1MHz
Mounting Type Through Hole
Package / Case TO-220-2
Supplier Device Package TO-220AC
Operating Temperature - Junction 175°C (Max)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names F7411,-LFUSCD15120A
Standard Package 500
Win Source Part Number 1150543-LFUSCD15120A
Ultra Librarian 3D Model Ultra Librarian LFUSCD15120A CAD Model

Description

The LFUSCD15120A is a silicon carbide Schottky diode that belongs to the discrete semiconductor products category from Littelfuse Inc.

  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Maximum Voltage: 1200 V
  • Average Rectified Current: 15A (DC)
  • Forward Voltage: 1.7 V @ 15 A
  • Reverse Recovery Time: Zero
