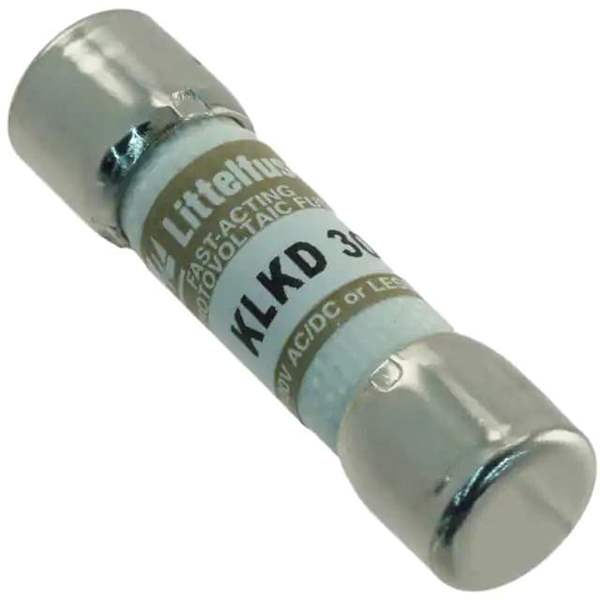

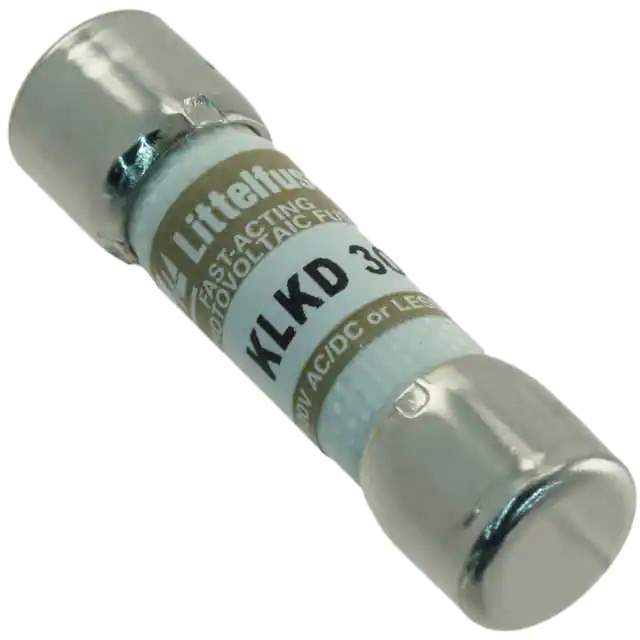

KLKD025.HXR Real Image
Same model may have multiple batches, images only for reference.

KLKD025.HXR

Part No KLKD025.HXR
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CARTRIDGE 25A 600VAC/VDC
Datasheet
KLKD025.HXR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series POWR-GARD® KLKD
Package Bulk
Product Status Active
Mounting Type Requires Holder
Fuse Type Cartridge
Current Rating (Amps) 25A
Voltage Rating - AC 600 V
Voltage Rating - DC 600 V
Response Time Fast Blow
Applications Solar (Photovoltaic)
Approval Agency CE, CSA, UL, VDE
Breaking Capacity @ Rated Voltage 100kA AC, 50kA DC
Package / Case Cartridge, Non-Standard
Size / Dimension 0.406" Dia x 1.500" L (10.31mm x 38.10mm)
Melting I2t 834.529
DC Cold Resistance 0.003532 Ohms
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
California Prop 65 Warning Information
Win Source Part Number 876372-KLKD025.HXR
Ultra Librarian 3D Model Ultra Librarian KLKD025.HXR CAD Model

Description

The 876372-KLKD025.HXR is a POWR-GARD® KLKD series fuse designed for circuit protection in solar (photovoltaic) applications.

  • Series: POWR-GARD® KLKD
  • Application: Circuit Protection in Solar (Photovoltaic) Applications
  • Fuse Type: Cartridge Fuse
  • Response Time: Fast Blow
  • Voltage Rating: 600 V AC and 600 V DC
  • Breaking Capacity: 100kA AC and 50kA DC @ Rated Voltage
  • Size: 0.406" diameter and 1.500" length
  • Mounting Requirement: Holder
  • DC Cold Resistance: 0.003532 Ohms
  • Compliance: CE, CSA, UL, and VDE standards
  • Status: Active
  • Manufacturer: Littelfuse Inc.
