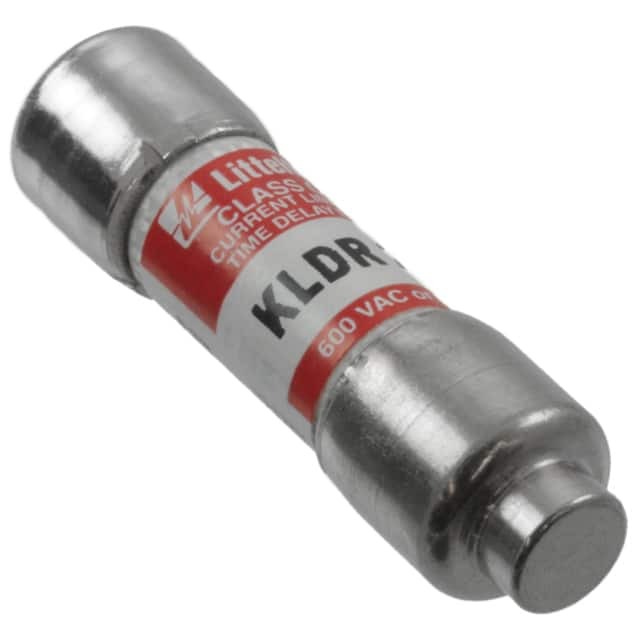

KLDR025.HXP Littelfuse Inc.
Same model may have multiple batches, images only for reference.

KLDR025.HXP

Part No KLDR025.HXP
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CARTRIDGE 25A 600VAC/300VDC / 25A 600 V AC 300 V DC Fuse Cartridge Holder
Datasheet
KLDR025.HXP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series POWR-GARD® KLDR
Package Bulk
Mounting Type Holder
Fuse Type Cartridge
Current Rating (Amps) 25A
Voltage Rating - AC 600 V
Voltage Rating - DC 300 V
Response Time Slow Blow
Applications Transformer Protection
Class CC
Approval Agency CE, CSA, UL
Breaking Capacity @ Rated Voltage 200kA AC, 20kA DC
Package / Case 5AG, 10mm x 38mm (Midget)
Dimension 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Names -KLDR025.HXP
Standard Package 100
Win Source Part Number 1159806-KLDR025.HXP
Ultra Librarian 3D Model Ultra Librarian KLDR025.HXP CAD Model

Description

The Littelfuse Inc. electronic component with a Win Source Part Number of 1159806-KLDR025.HXP is a cartridge type electrical, specialty fuse that belongs to the POWR-GARD® KLDR series.

  • Response Time: Slow Blow
  • Voltage Rating: 600V AC and 300V DC
  • Breaking Capacity: 200kA AC and 20kA DC @ Rated Voltage
  • Application: Transformer Protection
  • Current Rating: 25A
  • Package: Bulk
