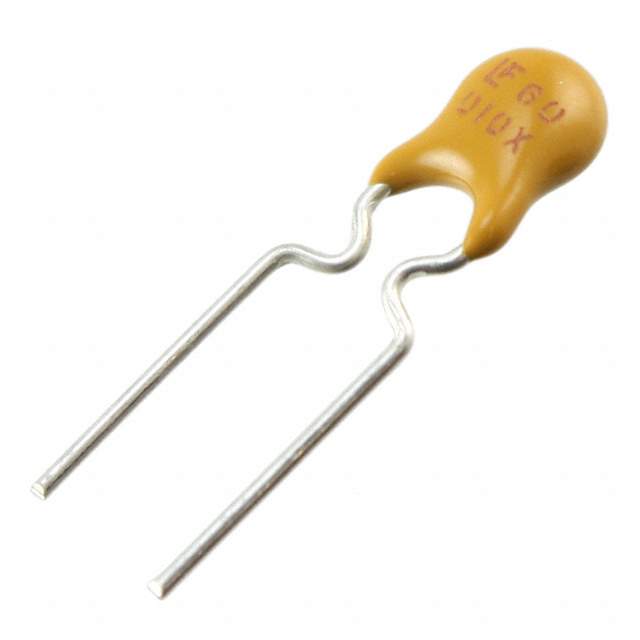

Same model may have multiple batches, images only for reference.

60R010XU

Name: 60R010XU
Brand: Littelfuse Inc.
SKU: 971475
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	60R010XU
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC Resettable Fuse 0.1A(hold) 0.2A(trip) 90VDC 40A 0.38W 4s 2.5Ohm Radial 7.4 X 3.1mm
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Approvals	TUV, cULus
Mounting	SMD (SMT)
Case / Package	Radial
Current Rating	100 mA
Height	12.7 mm
Hold Current	100 mA
Lead Free	Yes
Lead Pitch	5.1 mm
Max Current Rating	40 A
Maximum Operating Temperature	85 °C
Maximum Resistance 1 Hour (R1max)	7.5 Ω
Max Voltage Rating (DC)	60 V
Min Operating Temperature	-40 °C
Minimum Resistance Initial (Rmin)	2.5 Ω
Mount	Through Hole
Operating Supply Voltage	60 V
Packaging	Bulk
Power Dissipation	380 mW
REACH SVHC	Unknown
Resistance	7.5 Ω
RoHS	Compliant
Termination	Radial
Thickness	3.05 mm
Time to Trip	4 s
Trip Current	200 mA
Voltage Rating (DC)	60 V
Width	7.37 mm
Working Voltage	60 V
Win Source Part Number	971475-60R010XU
Categories	PTC Resettable Fuses
Manufacturer	Littelfuse Inc.
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 60R010XU CAD Model

Alternative Products

Description

The Littelfuse Inc. 60R010XU is a radial PTC resettable fuse that is designed to protect electronic devices from overcurrent and overvoltage conditions.

Fuse Type: PTC Resettable
Mounting: Radial
Current Rating: 100mA
Hold Current: 100mA
Working Voltage: 60V
Trip Current: 200mA
Package: Bulk
Mounting Type: Surface-Mounted
Supply and Demand: Shortage
Lead-Free: Yes
RoHS Compliant: Yes
