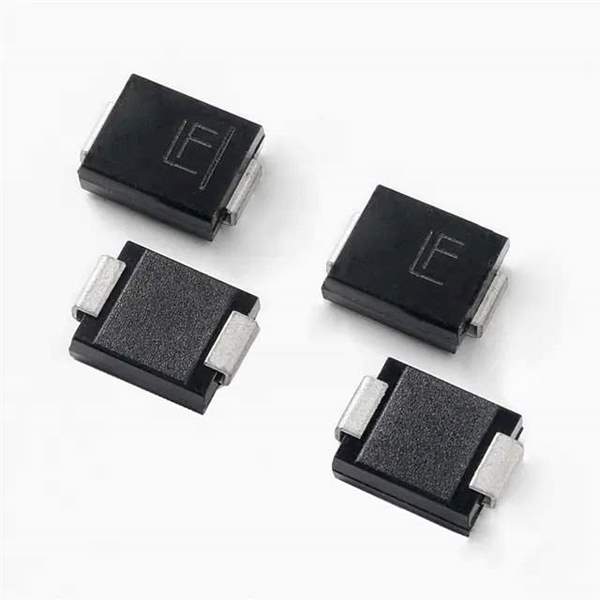

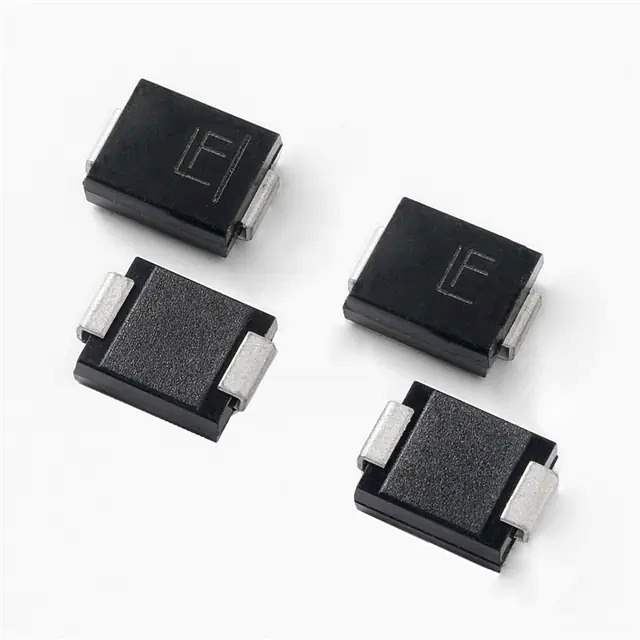

Same model may have multiple batches, images only for reference.

3.0SMCJ40A

Name: 3.0SMCJ40A
Brand: Littelfuse Inc.
SKU: 815534
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	3.0SMCJ40A
Manufacturer	Littelfuse Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 3000W UNI DO-214AB 40V
Datasheet	3.0SMCJ40A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Littelfuse Inc.
Series	3.0SMCJ
Package	Tape & Reel
Product Status	Active
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	40V
Voltage - Breakdown (Min)	44.4V
Voltage - Clamping (Max) @ Ipp	64.5V
Current - Peak Pulse (10/1000µs)	46.5A
Power - Peak Pulse	3000W (3kW)
Power Line Protection	No
Applications	Telecom
Temperature Range - Operating	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	DO-214AB, SMC
Supplier Device Package	DO-214AB (SMCJ)
Base Product Number	3.0SMCJ
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
California Prop 65	Warning Information
Win Source Part Number	815534-3.0SMCJ40A
Ultra Librarian 3D Model	Ultra Librarian 3.0SMCJ40A CAD Model

Alternative Products

Description

The 815534-3.0SMCJ40A is a surface mount TVS diode from Littelfuse Inc.

Series: 3.0SMCJ
Reverse Standoff Voltage: 40V
Breakdown Voltage: 44.4V
Clamping Voltage: 64.5V @ peak pulse current
Peak Pulse Power: 3000W (3kW)
Peak Pulse Current: 46.5A (10/1000µs)
Packaging: Tape & Reel
Standard Package: 3,000 pieces
Temperature Range: -65°C to 150°C
REACH Compliant: Yes
