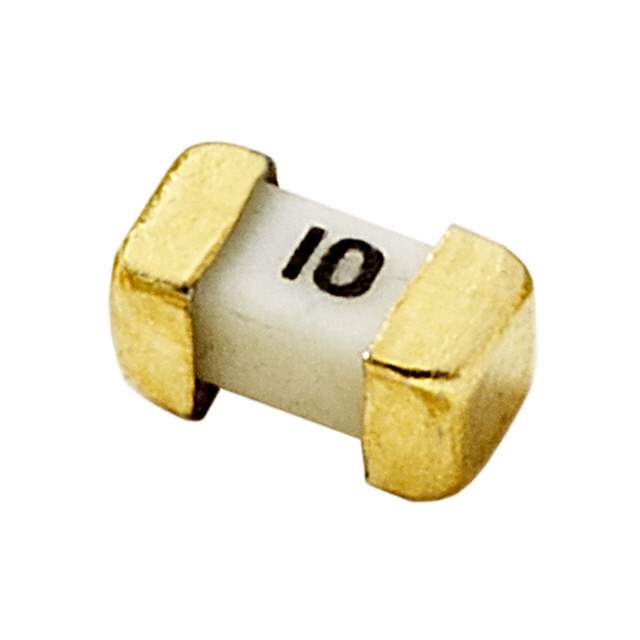

045801.6DR Real Image
Same model may have multiple batches, images only for reference.

045801.6DR

Part No 045801.6DR
Manufacturer Littelfuse Inc.
Catalog Fuses
Description Surface Mount Fuses | FUSE BOARD MNT 1.6A 48VAC 75VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Tape and Reel
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 1.6A
Voltage Rating - AC 48V
Voltage Rating - DC 75V
Response Time Fast Blow
Manufacturer Package 1206
Mounting Style SMD
Breaking Capacity at Rated Voltage 50A
Melting I2t 0.562
Approvals cULus
Temperature Range - Operating -55°C ~ 125°C
Parts Dimension 0.125" L x 0.062" W x 0.062" H (3.18mm x 1.58mm x 1.58mm)
DC Cold Resistance 0.092 Ohms
Manufacturer Pack Quantity 1,500
MSL Level 1 (Unlimited)
Win Source Part Number 1120658-045801.6DR
Manufacturer Homepage www.littelfuse.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 045801.6DR CAD Model

Description

The Littelfuse 045801.6DR is a board mount fuse that has a voltage rating of 48V (AC) and 75V (DC).

  • Current Rating: 1.6A
  • Breaking Capacity @ Rated Voltage: 50A
  • Package: reel - TR
  • Mounting Style: SMD
  • Package/Case: 1206
  • Response Time: fast blow
  • Melting I2t: 0.562
  • Approvals: cULus
  • DC Cold Resistance: 0.092 Ohms
  • Category: circuit protection
  • Operating Temperature: -55°C to 125°C
  • Supply and Demand: balanced
  • Manufacturer Pack Quantity: 1,500
  • MSL Level: 1 (Unlimited)
  • Parts Dimension: 0.125" L x 0.062" W x 0.062" H (3.18mm x 1.58mm x 1.58mm)
