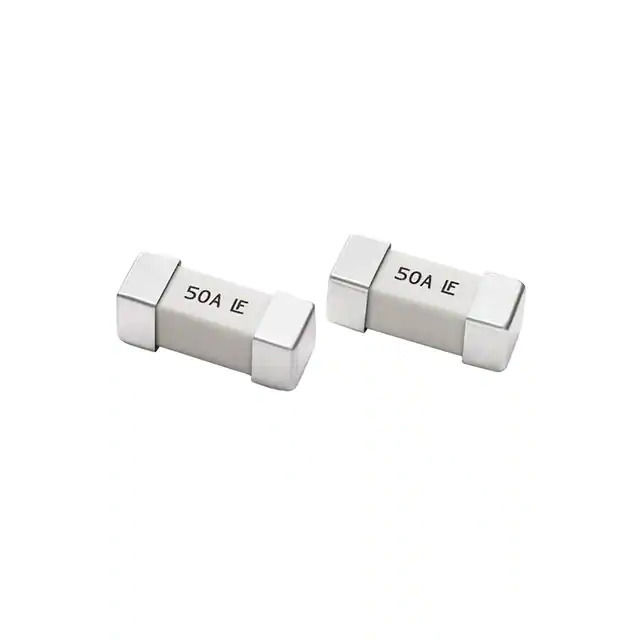

Same model may have multiple batches, images only for reference.
0456050.DRSD Littelfuse Inc.
Same model may have multiple batches, images only for reference.

0456050.DRSD

Part No 0456050.DRSD
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BRD MT 50A 125VAC 75VDC SMD / 50 A 125 V AC 75 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 2-SMD, Square End Block
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series NANO²® 456SD
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 50 A
Voltage Rating - AC 125 V
Voltage Rating - DC 75 V
Response Time Fast Blow
Package / Case 2-SMD, Square End Block
Breaking Capacity @ Rated Voltage 100A AC, 600A DC
Melting I²t 2700
Approval Agency cURus, PSE
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.480" L x 0.177" W x 0.177" H (12.20mm x 4.50mm x 4.50mm)
DC Cold Resistance 0.00105 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1361440-0456050.DRSD
Ultra Librarian 3D Model Ultra Librarian 0456050.DRSD CAD Model

Description

The NANO²® 456SD is a surface mount fuse designed for circuit protection in electronic components.

  • Current Rating: 50A
  • Voltage Rating: 125V AC and 75V DC
  • Fuse Type: Fast Blow
  • Breaking Capacity (AC): 100A AC @ Rated Voltage
  • Breaking Capacity (DC): 600A DC @ Rated Voltage
  • Package: 2-SMD, Square End Block
  • Compliance: RoHS Compliant
  • REACH: Unaffected by REACH
  • Approvals: cURus and PSE
  • Size: 0.480" L x 0.177" W x 0.177" H
