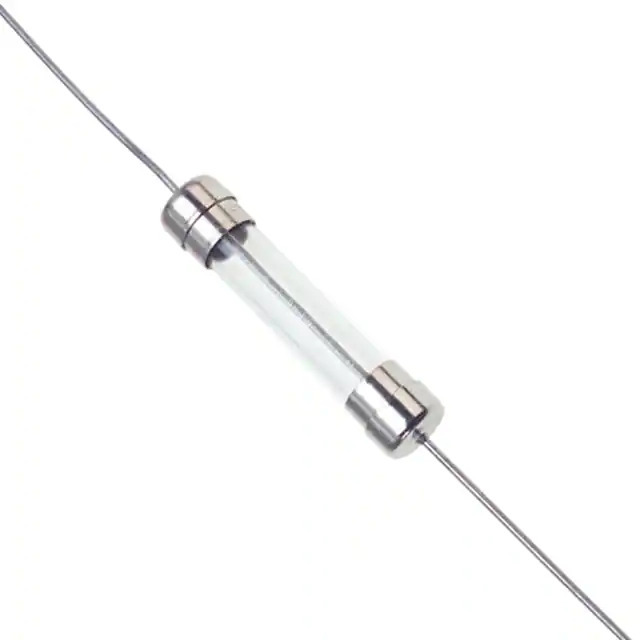

0315010.HXP Littelfuse Inc.
Same model may have multiple batches, images only for reference.

0315010.HXP

Part No 0315010.HXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 10A 32VAC 3AB 3AG / 10 A 32 V AC DC Fuse Cartridge, Glass Through Hole 3AB, 3AG, 1/4" x 1-1/4" (Axial)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 315
Package Bulk
Product Status Active
Mounting Type Through Hole
Fuse Type Cartridge, Glass
Current Rating (Amps) 10 A
Voltage Rating - AC 32 V
Response Time Slow Blow
Package / Case 3AB, 3AG, 1/4" x 1-1/4" (Axial)
Breaking Capacity @ Rated Voltage 300A
Melting I²t 760
Approval Agency UL
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.275" Dia x 1.275" L (6.99mm x 32.39mm)
DC Cold Resistance 0.0083 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0020
Win Source Part Number 1361347-0315010.HXP
Ultra Librarian 3D Model Ultra Librarian 0315010.HXP CAD Model

Description

The 1361347-0315010.HXP is a fuse manufactured by Littelfuse Inc.

  • Series: 315
  • Package Type: 3AB, 3AG, 1/4" x 1-1/4" (Axial)
  • Operating Temperature: -55°C to 125°C
  • Current Rating: 10 A
  • Voltage Rating: 32 V AC
  • Fuse Type: Cartridge, Glass
  • Response Time: Slow Blow
  • Breaking Capacity: 300A
  • Melting I²t: 760
