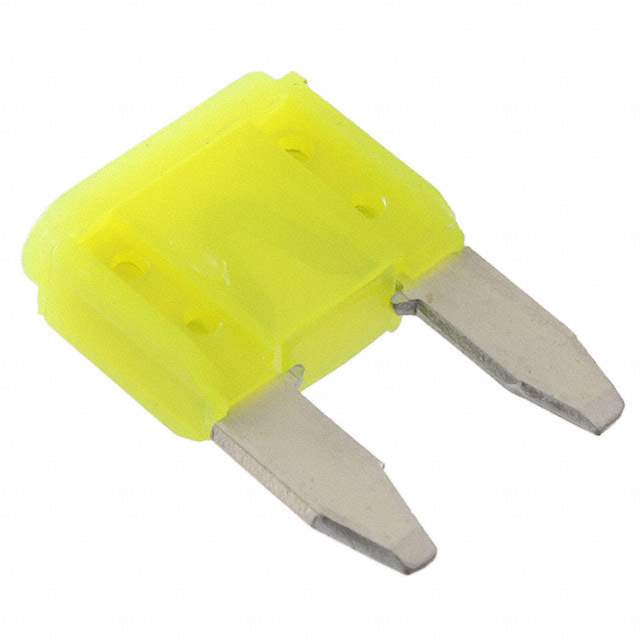

0297020.WXNV Littelfuse Inc. 0297020.WXNV Real Image 0297020.WXNV real image
Same model may have multiple batches, images only for reference.
0297020.WXNV Littelfuse Inc. 0297020.WXNV Real Image 0297020.WXNV real image
0297020.WXNV Littelfuse Inc. 0297020.WXNV Real Image 0297020.WXNV real image
Same model may have multiple batches, images only for reference.

0297020.WXNV

Part No 0297020.WXNV
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE AUTO 20A 32VDC BLADE MINI
Datasheet
0297020.WXNV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Bulk
Status Active
Fuse Type Automotive
Current Rating 20A
Voltage Rating - DC 32V
Response Time Fast
Mounting Clip / Holder
Breaking Capacity @ Rated Voltage 1kA
Nominal Melting - I2t 380
Temperature Range - Operating -40°C to 125°C
Color Yellow
Nominal Cold Resistance 0.00321 Ohm
Win Source Part Number 1000067-0297020.WXNV
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Computers & Computer Peripherals, Communications & Networking, Consumer Electronics, Industrial
Ultra Librarian 3D Model Ultra Librarian 0297020.WXNV CAD Model

Description

The Littelfuse Inc. 0297020.WXNV is an automotive fuse.

  • Application: Automotive
  • Category: Circuit Protection
  • Status: Active
  • Popularity: Medium
  • Current Rating: 20A
  • Voltage Rating: 32V DC
  • Response Time: Fast
  • Breaking Capacity: 1kA @ Rated Voltage
  • Mounting: Clip/Holder
  • Nominal Cold Resistance: 0.00321 Ohm
  • Applications: Computers and Computer Peripherals, Communications and Networking, Consumer Electronics, Industrial
