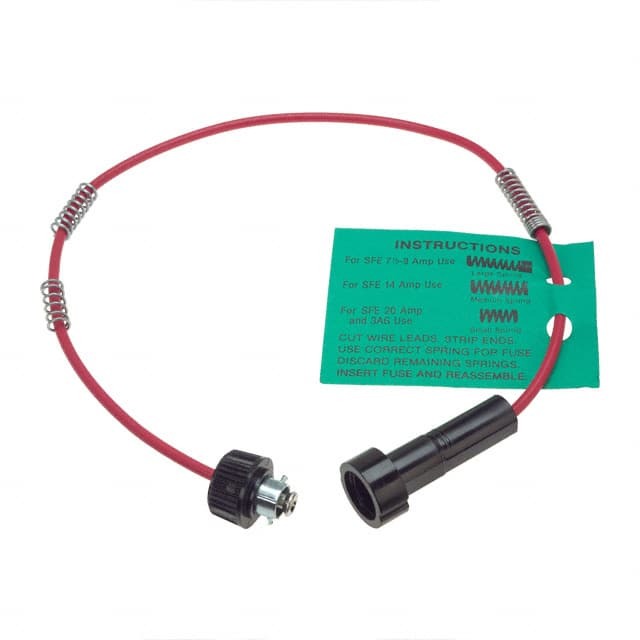

Same model may have multiple batches, images only for reference.
01500145Z
Same model may have multiple batches, images only for reference.

01500145Z

Part No 01500145Z
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE HLDR CART 32V 20A IN LN 6PC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Littelfuse Inc.
Series 150
Package Bulk
Product Status Active
Mounting Type Free Hanging (In-Line)
Fuse Size 0.25" Dia x 0.625" ~ 1.26" L (6.35mm x 15.88mm ~ 32mm)
Current Rating (Amps) 20 A
For Use With/Related Products 1AG, 3AG, 7AG, 8AG, SFE-14, SFE-6
Fuse Type Cartridge
Fuseholder Type Holder
Number of Circuits 1
Voltage 32V
Termination Style Wire Leads
Contact Material Brass
Contact Finish Tin
Standard Package 1 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
California Prop 65 Warning Information
Win Source Part Number 853123-01500145Z
Ultra Librarian 3D Model Ultra Librarian 01500145Z CAD Model

Description

The 150 series fuseholder is designed for use with various cartridge fuses, including 1AG, 3AG, 7AG, 8AG, SFE-14, and SFE-6.

  • Fuse Size: 1AG, 3AG, 7AG, 8AG, SFE-14, SFE-6
  • Termination: Wire Leads
  • Contact Finish: Tin
  • Fuseholder Material: Brass
  • Voltage Rating: 32V
  • Fuse Size Compatibility: 0.25" diameter x 0.625" ~ 1.26" length
  • Mounting: Free Hanging (In-Line)
  • Package: Bulk
  • Manufacturer: Littelfuse Inc.
  • REACH: Unaffected
  • California Prop 65: Does not contain listed substances
