The LTC2704IGW-12#PBF is a high-performance quad 12-bit digital-to-analog converter (DAC) designed and manufactured by Linear Technology, now part of Analog Devices. This product is specifically engineered to meet the demands of precision voltage output applications, offering exceptional accuracy and stability.

Key Features:

• Resolution: Each of the four DACs within the LTC2704IGW-12#PBF offers a 12-bit resolution, providing fine granularity for output voltage adjustments.
• Integrated Precision: The device includes an onboard precision reference, ensuring high accuracy and low drift over temperature and time, which is critical for sensitive applications.
• Flexible Voltage Outputs: The DACs can be configured for unipolar or bipolar outputs, giving designers the flexibility to tailor the output range to their specific needs.
• Interface Options: It features a user-friendly SPI/Microwire-compatible 3-wire serial interface, making it easy to connect to a variety of microcontrollers and digital systems.
• Power Supply Range: The LTC2704IGW-12#PBF operates on a 4.5V to 5.5V supply, making it compatible with most common system voltages.

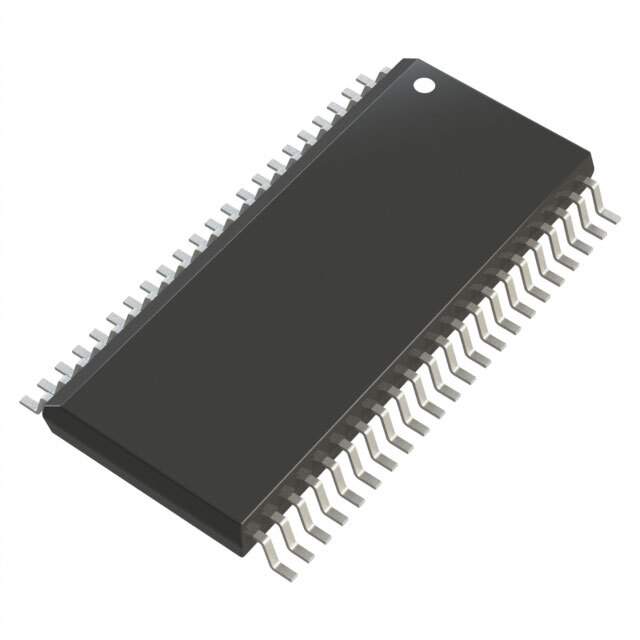

• Package: Housed in a 36-lead SSOP package, the LTC2704IGW-12#PBF is designed for space-constrained applications.
• Industrial Temperature Range: This device is rated for operation across the industrial temperature range of -40°C to 85°C, ensuring reliable performance in harsh environments.

Applications:

The LTC2704IGW-12#PBF is well-suited for a variety of applications that require high precision and stability in voltage output. These include:

• Automated Test Equipment (ATE)
• Process Control and Industrial Automation
• Data Acquisition Systems
• Digital Offset and Gain Adjustment
• Programmable Voltage and Current Sources

Product Quality and Reliability:

Linear Technology is renowned for its commitment to quality, and the LTC2704IGW-12#PBF is no exception. It is designed to meet stringent specifications and undergoes rigorous testing to ensure it meets the high standards expected by the industry for performance and reliability.
