Same model may have multiple batches, images only for reference.

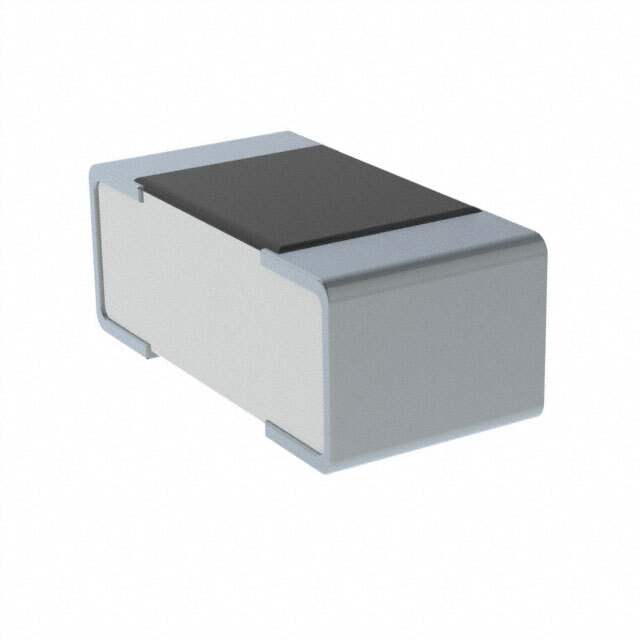

RN732ATTD20R0B25 Real Image
Same model may have multiple batches, images only for reference.

RN732ATTD20R0B25

Part No RN732ATTD20R0B25
Manufacturer KOA Speer
Catalog Chip Resistor - Surface Mount
Description RES 20 OHM 0.1% 1/10W 0805
Datasheet
RN732ATTD20R0B25 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr KOA Speer
Series RN73
Package Tape & Reel
Product Status Obsolete
Resistance 20 Ohms
Tolerance ±0.1%
Power (Watts) 0.1W, 1/10W
Composition Thin Film
Features Moisture Resistant
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.024" (0.60mm)
Number of Terminations 2
Base Product Number RN732A
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 748780-RN732ATTD20R0B25
Ultra Librarian 3D Model Ultra Librarian RN732ATTD20R0B25 CAD Model

Description

The 748780-RN732ATTD20R0B25 is a chip resistor surface mount component from the RN73 series by KOA Speer.

  • Moisture-Resistant: true
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Size: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Height: 0.024" (0.60mm)
  • Power Rating: 0.1W (1/10W)
  • Resistance: 20 Ohms
  • Package/Case Size: 0805 (2012 Metric)
  • Package: tape & reel
  • Operating Temperature Range: -55°C to 155°C
  • ECCN: EAR99
  • REACH: not affected
