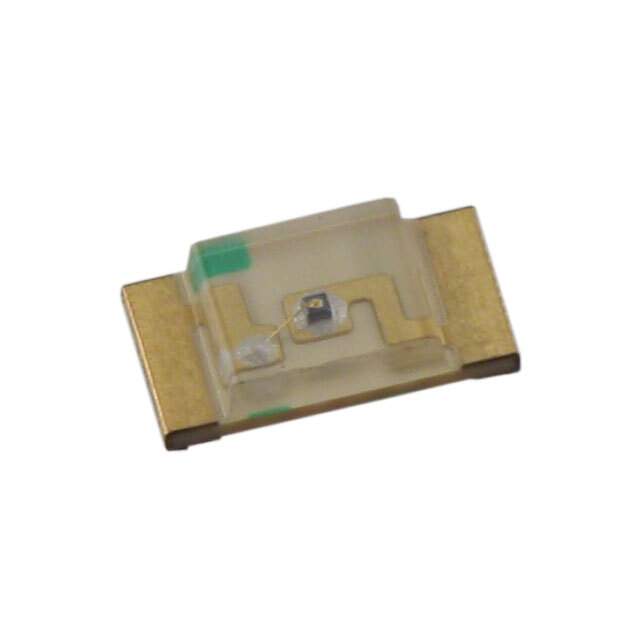

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Manufacturer Kingbright
Packaging Reel - TR
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 8mcd
Lens Style Rectangle with Flat Top
Lens Size 2.00mm x 1.60mm
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 120°
Mounting Surface Mount
Wavelength - Dominant 617nm
Wavelength - Peak 627nm
Case / Package 1206 (3216 Metric)
Supplier Device Package Chip LED
Size / Dimension 3.20mm L x 1.60mm W
Height (Max) 0.75mm
Base Product Number APT3216
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Part Number 754-1137-1,754-1137-6,754-1137-2
Standard Package 2,000
Win Source Part Number 1331761-APT3216EC
Ultra Librarian 3D Model Ultra Librarian APT3216EC CAD Model

Description

The Kingbright APT3216EC LED Indication is a high-performance electronic component that is perfect for optoelectronics applications.

  • Millicandela Rating: 8mcd
  • Mounting: surface mountable
  • Configuration: standard
  • Viewing Angle: 120 degrees
  • Voltage-Forward: 2V (Typ)
  • Wavelength-Dominant: 617nm
  • Wavelength-Peak: 627nm
  • HTSUS: 8541.41.0000
