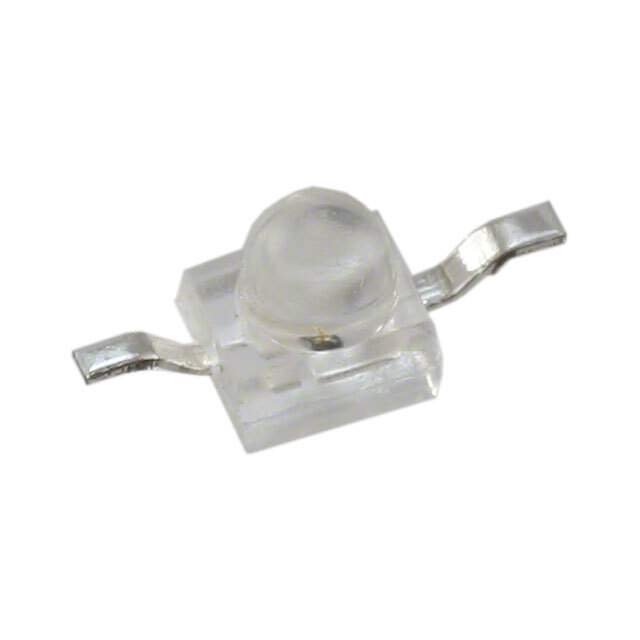

AM2520SECK09 Real Image
Same model may have multiple batches, images only for reference.

AM2520SECK09

Part No AM2520SECK09
Manufacturer Kingbright
Catalog LED Indication - Discrete
Description LED ORANGE CLEAR SMD / Orange 601nm LED Indication - Discrete 2.1V 2-SMD, Z-Bend
Datasheet
AM2520SECK09 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Manufacturer Kingbright
Packaging Reel - TR
Color Orange
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 1800mcd
Lens Style Round with Domed Top
Lens Size 1.90mm Dia
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Viewing Angle 20°
Mounting Surface Mount, Bottom Entry
Wavelength - Dominant 601nm
Wavelength - Peak 610nm
Case / Package 2-SMD, Z-Bend
Supplier Device Package SMD
Size / Dimension 2.50mm L x 2.00mm W
Height (Max) 2.90mm
Base Product Number AM2520
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Part Number 754-1413-2,754-1413-1,754-1413-6
Standard Package 1,000
Win Source Part Number 1331754-AM2520SECK09
Ultra Librarian 3D Model Ultra Librarian AM2520SECK09 CAD Model

Description

The Kingbright 1331754-AM2520SECK09 is an orange LED indication module with a millicandela rating of 1800mcd.

  • Millicandela Rating: 1800mcd
  • Forward Voltage: 2.1V
  • Current: 20mA
  • Peak Wavelength: 610nm
  • Dominant Wavelength: 601nm
  • Package: 2-SMD, Z-Bend reel
  • Dimension: 2.50mm L x 2.00mm W

This LED indication module is perfect for use in electronic circuits and projects.
