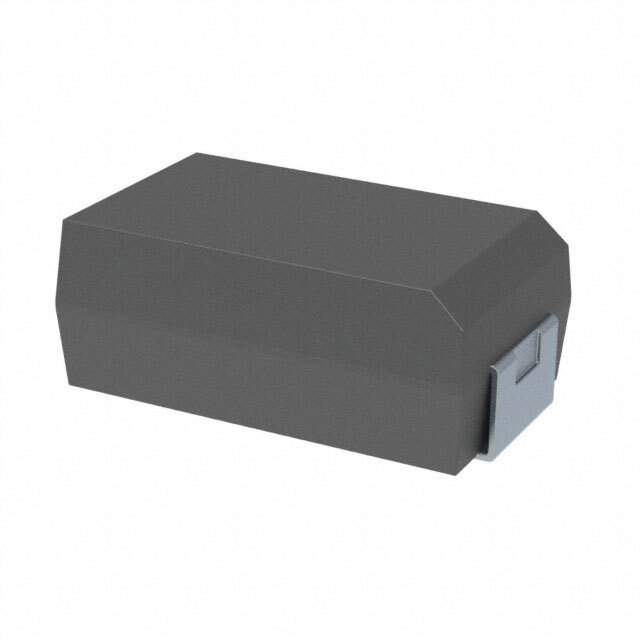

T520D337M004ATE007 Real Image
Same model may have multiple batches, images only for reference.

T520D337M004ATE007

Part No T520D337M004ATE007
Manufacturer Kemet
Catalog Tantalum - Polymer Capacitors
Description CAP TANT POLY 330UF 4V 2917 / Cap Tant Polymer 330uF 4VDC D CASE 20% (7.3 X 4.3 X 2.8mm) SMD 7343-31 0.007 Ohm 105°C T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Series KO-CAP T520
Packaging Reel package
Capacitance 330μF
Tolerance ±20%
Voltage Rating DC 4V
Type Molded
ESR (Equivalent Series Resistance) 7 mOhm
Operating Temperature Range -55°C ~ 105°C
Lifetime @ Temp. 2000 Hrs @ 105°C
Mounting SMD
Package 2917 (7343 Metric)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.122" (3.10mm)
Manufacturer Size Code D
Features General
Win Source Part Number 796141-T520D337M004ATE007
Popularity Medium
Supply and Demand Status Balance
Family Name T520
Introduction Date September 26, 2011
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian T520D337M004ATE007 CAD Model

Description

The Kemet T520D337M004ATE007 capacitor is a molded type capacitor with a capacitance of 330μF and a tolerance of ±20%.

  • ESR (Equivalent Series Resistance): 7 mOhm
  • Voltage Rating: 4V DC
  • Package Size: 2917 (7343 Metric)
  • Mounting: Surface Mount Device (SMD)
  • Temperature Range: -55°C to 105°C
  • Lifetime: 2000 hours @ 105°C
  • Series: KO-CAP T520
  • Halogen-Free Compliant: Yes
  • Estimated EOL (End of Life) Date: 2030
