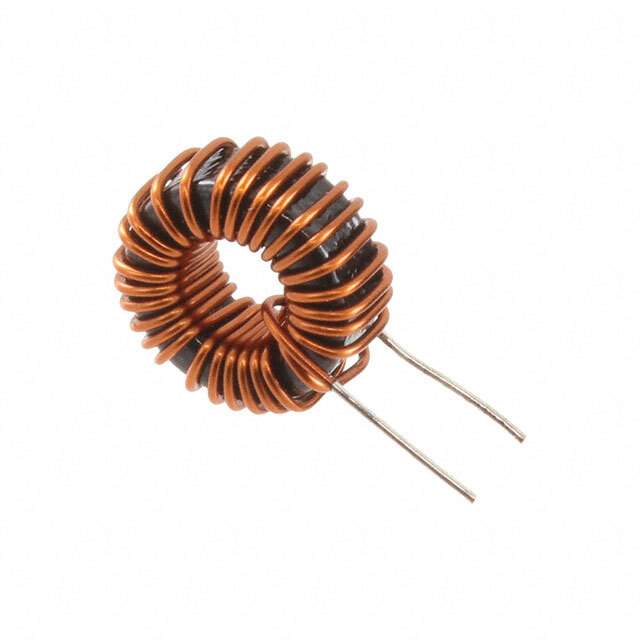

Same model may have multiple batches, images only for reference.

SHBC14-1R2A0067V

Name: SHBC14-1R2A0067V
Brand: Kemet
SKU: 1272735
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SHBC14-1R2A0067V
Manufacturer	Kemet
Catalog	Fixed Inductors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	KEMET
Series	SHBC
Package	Bulk
Type	Toroidal
Material - Core	Alloy Powder
Inductance	67 µH
Tolerance	±20%
Current Rating (Amps)	8 A
Shielding	Unshielded
DC Resistance (DCR)	22.2mOhm Max
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical (Open)
Supplier Device Package	Radial
Dimension	1.319" Dia (33.50mm)
Height - Seated (Max)	1.319" (33.50mm)
Base Product Number	SHBC14
Other Names	399-19143,UALS141R2A0067
Standard Package	120
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1272735-SHBC14-1R2A0067V
Ultra Librarian 3D Model	Ultra Librarian SHBC14-1R2A0067V CAD Model

Alternative Products

Description

The KEMET SHBC14-1R2A0067V electronic component with the Win Source Part Number 1272735-SHBC14-1R2A0067V is a radial, vertical (open) package fixed inductor.

Inductance: 67 µH
Tolerance: ±20%
Package: Bulk
Material-Core: Alloy powder
DC Resistance (DCR): 22.2mOhm Max
Current Rating (Amps): 8 A
Temperature Range: -40°C ~ 125°C
