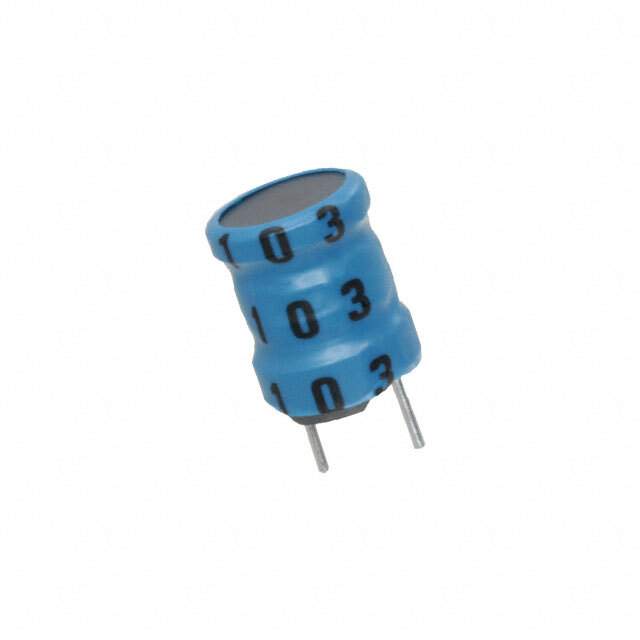

Same model may have multiple batches, images only for reference.

SBCP-80HY103HB

Name: SBCP-80HY103HB
Brand: Kemet
SKU: 1272823
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SBCP-80HY103HB
Manufacturer	Kemet
Catalog	Fixed Inductors
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	KEMET
Series	SBCP
Package	Bulk
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	10 mH
Tolerance	±10%
Current Rating (Amps)	100 mA
Current - Saturation (Isat)	150mA
Shielding	Unshielded
DC Resistance (DCR)	19.1Ohm Max
Temperature Range - Operating	-20°C ~ 105°C
Inductance Frequency - Test	10 kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Dimension	0.374" Dia (9.50mm)
Height - Seated (Max)	0.433" (11.00mm)
Base Product Number	SBCP-80HY
Other Names	399-19984,UPIO80HY103HB0
Standard Package	2,000
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1272823-SBCP-80HY103HB
Ultra Librarian 3D Model	Ultra Librarian SBCP-80HY103HB CAD Model

Alternative Products

Description

The Kemet 1272823-SBCP-80HY103HB drum core, wirewound inductor is a fixed inductor designed for use in a range of electronic applications.

Manufacturer: Kemet
Inductance: 10mH
Tolerance: ±10%
Shielding: unshielded
Material: ferrite
DC Resistance: 19.1Ohm max
Current Rating: 100mA
Height: 0.433" (11.00mm)
Package: bulk
Package/Case: Radial, vertical cylinder package/case
ECCN: EAR99
