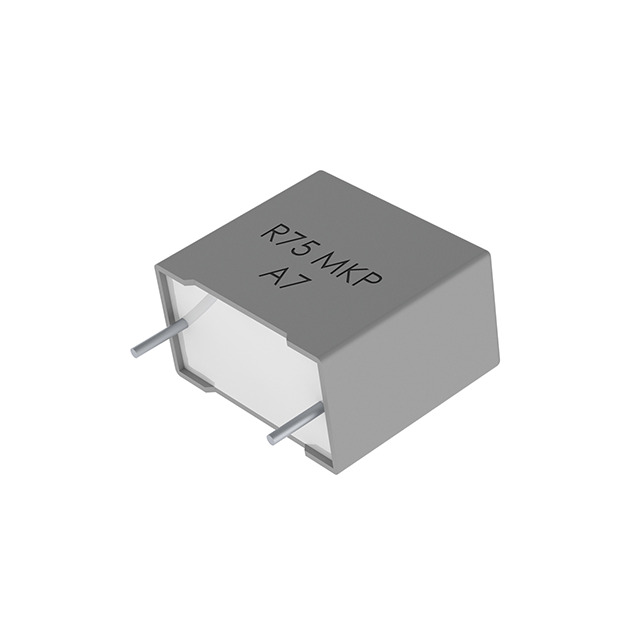

Same model may have multiple batches, images only for reference.
R76PF1680SE00K Kemet – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

R76PF1680SE00K

Part No R76PF1680SE00K
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 6800PF 10% 630VDC RAD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Capacitance 6800 pF
Tolerance ±10%
Voltage Rating - AC 400V
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -55°C ~ 110°C
Mounting Type Through Hole
Case / Package Radial
Size / Dimension 0.512" L x 0.157" W (13.00mm x 4.00mm)
Height - Seated (Max) 0.354" (9.00mm)
Termination PC Pins
Lead Spacing 0.394" (10.00mm)
Applications Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings AEC-Q200
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1522197-R76PF1680SE00K
Ultra Librarian 3D Model Ultra Librarian R76PF1680SE00K CAD Model
