Same model may have multiple batches, images only for reference.

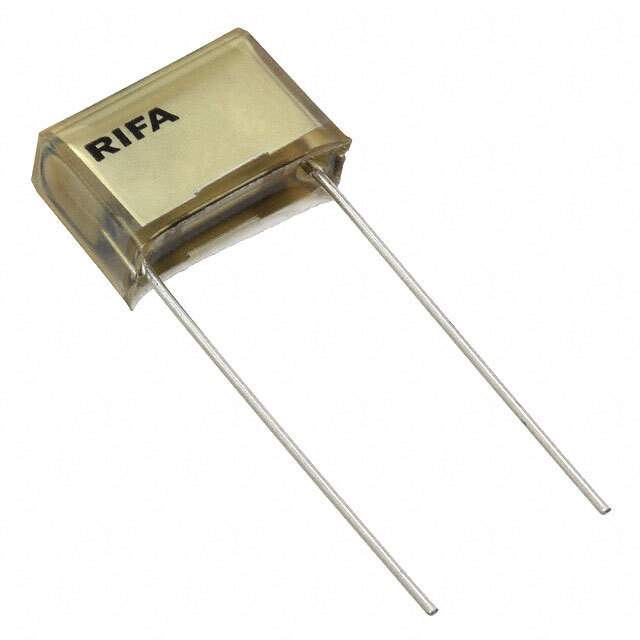

PMR210MB5220M100R30 Real Image
Same model may have multiple batches, images only for reference.

PMR210MB5220M100R30

Part No PMR210MB5220M100R30
Manufacturer Kemet
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC 100 OHM/0.022UF TH
Datasheet
PMR210MB5220M100R30 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Kemet
Packaging Bulk
Status Active
Type Low Pass
Filter Order 1st
Technology RC
Number of Channels 1
Resistance - Channel (Ohms) 100
Values R = 100 Ohms, C = 0.022μF
ESD Protection No
Temperature Range - Operating -40°C to 85°C
Applications General Purpose
Voltage Rating 250VAC
Mounting Through Hole
Dimension 0.728" L x 0.287" W (18.50mm x 7.30mm)
Height 0.512" (13.00mm)
Win Source Part Number 210201-PMR210MB5220M100R30
Popularity Medium
Supply and Demand Status Balance
Quantity per package 400
Ultra Librarian 3D Model Ultra Librarian PMR210MB5220M100R30 CAD Model

Description

The Kemet 210201-PMR210MB5220M100R30 is a low pass filter with a resistance of 100 Ohms and a capacitance of 0.022μF.

  • Voltage Rating: 250VAC
  • Application: General purpose
  • Mounting: Through hole
  • Package: Bulk
  • Height: 0.512" (13.00mm)
  • Dimension: 0.728" L x 0.287" W (18.50mm x 7.30mm)
  • Temperature Range: -40°C to 85°C
  • Market Popularity: Medium
  • Supply and Demand Status: Balanced
  • Quantity per Package: 400
