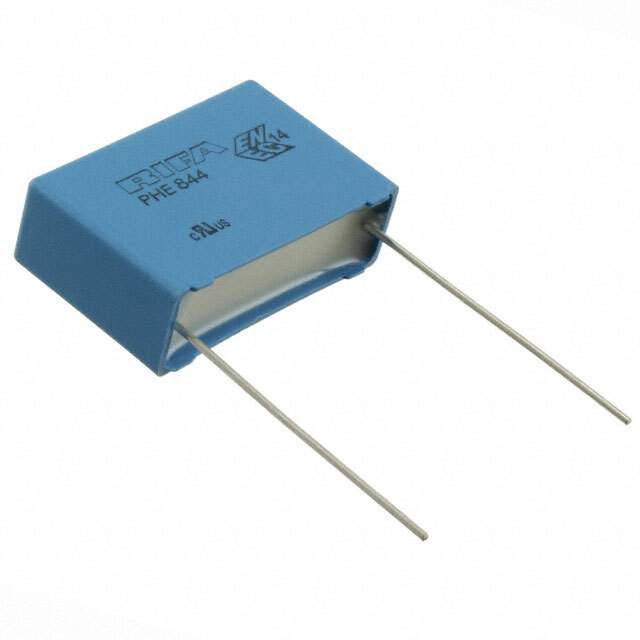

PHE844RF6220MR30L2 Real Image
Same model may have multiple batches, images only for reference.

PHE844RF6220MR30L2

Part No PHE844RF6220MR30L2
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 0.22UF 20% 1KVDC RADIAL / Cap Film Suppression X1 0.22uF 1000VDC/440VAC PP 20% (31.5 X 10.5 X 20.5mm) Radial 27.5mm 105°C Bulk
Datasheet
PHE844RF6220MR30L2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Series PHE844
Packaging Bulk
Capacitance 0.22μF
Tolerance ±20%
Voltage Rating - AC 480V
Voltage Rating - DC 1000V (1kV)
Dielectric Material Polypropylene (PP), Metallized
Operating Temperature Range -40°C ~ 105°C
Mounting Style Through Hole
Package Radial
Dimension 1.240" L x 0.413" W (31.50mm x 10.50mm)
Height - Seated (Maximum) 0.807" (20.50mm)
Termination PC Pins
Lead Spacing 1.083" (27.50mm)
Applications EMI, RFI Suppression
Features X1 Safety Rated
Win Source Part Number 793175-PHE844RF6220MR30L2
Popularity Medium
Supply and Demand Status Limited
Family Name PHE844
ECCN EAR99
Country of Origin Indonesia
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian PHE844RF6220MR30L2 CAD Model

Description

The Kemet PHE844RF6220MR30L2 is a capacitor with a capacitance of 0.22μF and a tolerance of ±20%.

  • Voltage Rating: 480V AC and 1000V DC
  • Safety Rating: X1
  • Applications: EMI and RFI suppression
  • Lead Spacing: 1.083" (27.50mm)
  • Height: 0.807" (20.50mm)
  • Package/Case: Radial
  • RoHS Compliant: Yes
  • Country of Origin: Indonesia
  • Estimated EOL Date: 2029
