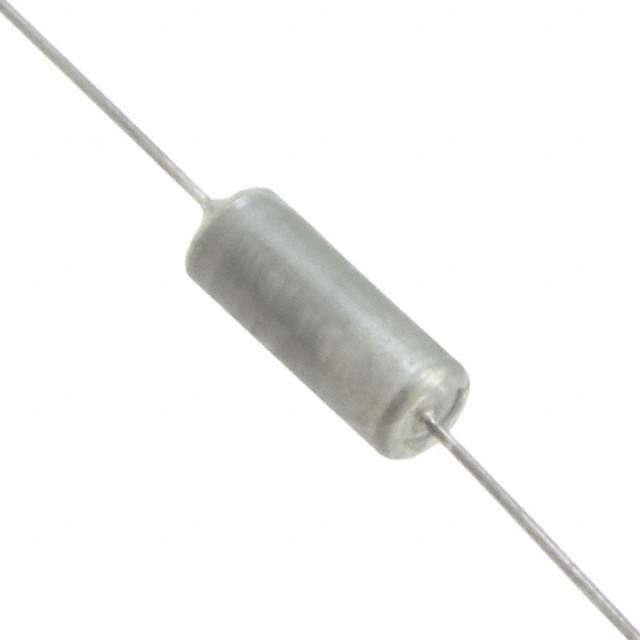

M39003/01-2511 Real Image
Same model may have multiple batches, images only for reference.

M39003/01-2511

Part No M39003/01-2511
Manufacturer Kemet
Catalog Tantalum Capacitors
Description CAP TANT 22UF 10% 15V AXIAL
Datasheet
M39003/01-2511 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Bulk
Status Active
Capacitance 22μF
Tolerance ±10%
Voltage Rating 15V
Type Hermetically Sealed
ESR 2 Ohm
Temperature Range - Operating -55°C to 125°C
Mounting Through Hole
Dimension 0.185" Dia x 0.610" L (4.70mm x 15.49mm)
Manufacturer Size Code B
Features Military
Failure Rate P (0.1%)
Win Source Part Number 1021812-M39003/01-2511
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian M39003/01-2511 CAD Model

Description

The Kemet 1021812-M39003/01-2511 is a hermetically sealed capacitor with a capacitance of 22μF and a voltage rating of 15V.

  • Tolerance: ±10%
  • ESR: 2 Ohm
  • Height: 0.185" Dia x 0.610" L (4.70mm x 15.49mm)
  • Mounting: using the through-hole method
  • Suitable for: military applications
  • Failure Rate: P (0.1%)
  • Operating Temperature Range: -55°C to 125°C
  • Manufacturer Size Code: B
