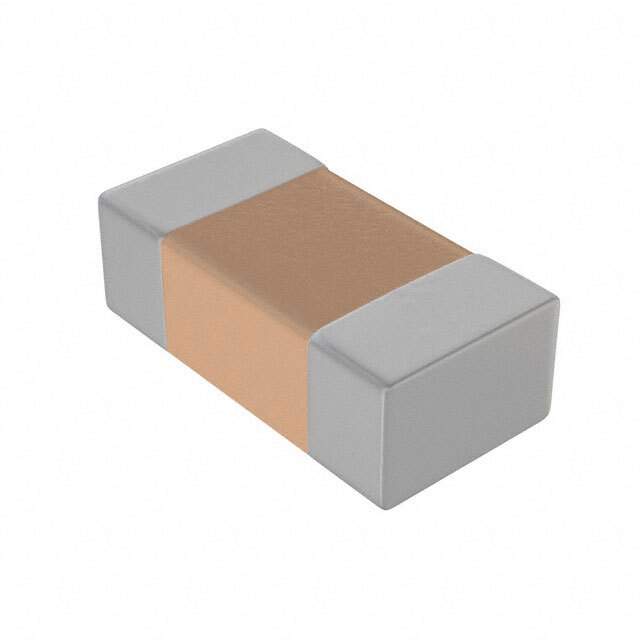

LDEEA1270KA0N00 Real Image
Same model may have multiple batches, images only for reference.

LDEEA1270KA0N00

Part No LDEEA1270KA0N00
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 2700PF 10% 100VDC 1206 / 2700 pF Film Capacitor 63V 100V Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked 1206 (3216 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr KEMET
Series LDE
Package Tape & Reel (TR)
Capacitance 2700 pF
Tolerance ±10%
Voltage Rating - AC 63V
Voltage Rating - DC 100V
Dielectric Material Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 1206 (3216 Metric)
Dimension 0.130" L x 0.067" W (3.30mm x 1.70mm)
Height - Seated (Max) 0.043" (1.10mm)
Termination Solder Pads
Applications Automotive
Ratings AEC-Q200
Features High Temperature
Base Product Number LDEEA
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Names DEEA1270KA0N00
Standard Package 3,000
Win Source Part Number 1041962-LDEEA1270KA0N00
Ultra Librarian 3D Model Ultra Librarian LDEEA1270KA0N00 CAD Model

Description

The LDE series capacitor is a high temperature capacitor with a capacitance of 2700 pF and a tolerance of ±10%.

  • Capacitance: 2700 pF
  • Tolerance: ±10%
  • AEC-Q200: Yes
  • Voltage Rating AC: 63V AC
  • Voltage Rating DC: 100V DC
  • Dielectric Material: Polyester, Polyethylene Naphthalate (PEN), Metallized-Stacked
  • Package: 1206 (3216 Metric)
  • Height: 0.043" (1.10mm)
  • Mounting Type: SMD (SMT)
  • Packaging: Tape & Reel (TR)
  • Alternative Parts: ECW-U1272JX5
  • REACH Affected: No
  • HTSUS Code: 8532.25.0010
