Same model may have multiple batches, images only for reference.

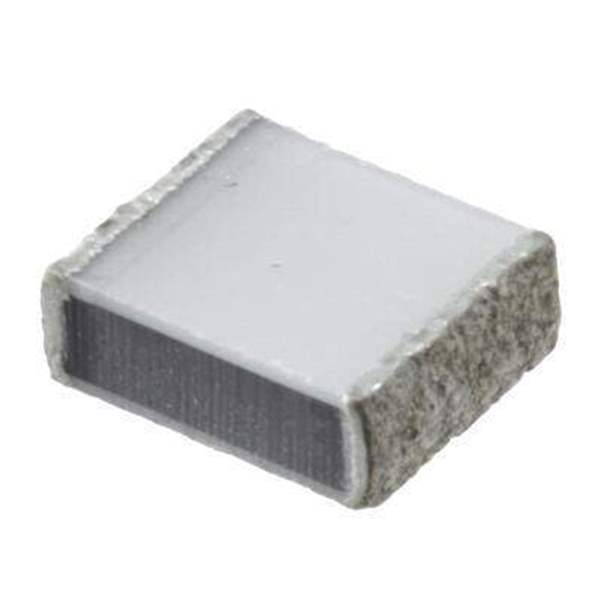

LDEDE4100KA5N00KEMET
Same model may have multiple batches, images only for reference.

LDEDE4100KA5N00

Part No LDEDE4100KA5N00
Manufacturer Kemet
Catalog Film Capacitors
Description CAP FILM 1UF 10% 63VDC 2824
Datasheet
LDEDE4100KA5N00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer KEMET
Category Capacitors Film Capacitors
Part Status Active
Tolerance ±10%
Voltage Rating - AC 40V
Voltage Rating - DC 63V
Operating Temperature -55°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.287" L x 0.240" W (7.30mm x 6.10mm)
Height - Seated (Max) 0.122" (3.10mm)
Termination Solder Pads
Applications Automotive
Win Source Part Number WS1306451-LDEDE4100KA5N00
Ultra Librarian 3D Model Ultra Librarian LDEDE4100KA5N00 CAD Model

Description

Benefits
• Rated voltage: 50 – 1,000 VDC
• Rated voltage: 40 – 250 VAC
• Capacitance range: 0.001 – 4.7 µF
• EIA Size: 1206 – 6054
• Capacitance tolerance: ±10%, ±20%, ±5% on request
• Climatic category: 55/125/56
• RoHS Compliant and lead-free terminations
• Operating temperature range of −55°C to +125°C
• Automotive (AEC–Q200) grades available
