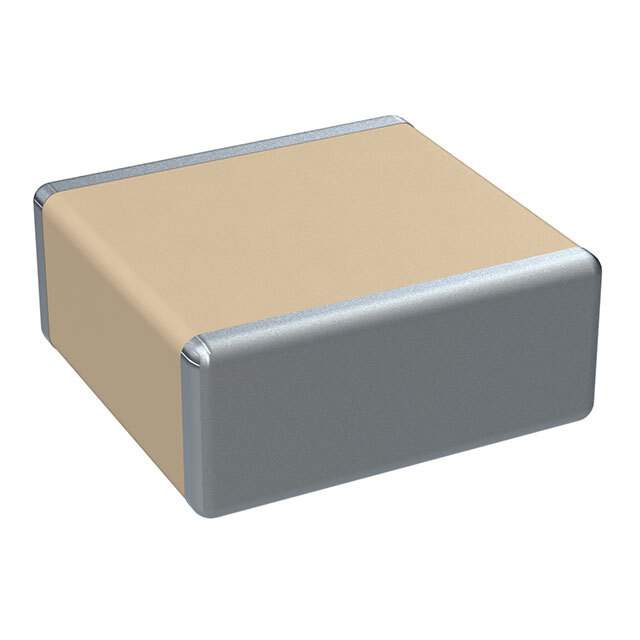

C2225X104KFRAC7800 Real Image
Same model may have multiple batches, images only for reference.

C2225X104KFRAC7800

Part No C2225X104KFRAC7800
Manufacturer Kemet
Catalog Ceramic Capacitors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr KEMET
Series SMD Comm X7R HV Flex
Package Tape & Reel
Capacitance 0.1 µF
Tolerance ±10%
Voltage - Rated 1500V (1.5kV)
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features Low ESL, Soft Termination, High Voltage
Applications Boardflex Sensitive
Mounting Type Surface Mount, MLCC
Package / Case 2225 (5763 Metric)
Dimension 0.232" L x 0.252" W (5.90mm x 6.40mm)
Thickness (Max) 0.106" (2.70mm)
Base Product Number C2225X
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1314818-C2225X104KFRAC7800
Ultra Librarian 3D Model Ultra Librarian C2225X104KFRAC7800 CAD Model

Description

This ceramic capacitor is a part of the SMD Comm X7R HV Flex series and has a Win Source Part Number of 1314818-C2225X104KFRAC7800.

  • Capacitance: It has a capacitance of 0.1µF.
  • Tolerance: with a tolerance of ±10%.
  • Voltage Rating: The voltage rating is 1500V (1.5kV).
  • Temperature Coefficient: the temperature coefficient is X7R.
  • Thickness: The thickness is 0.106 inches.
  • Package: comes in a 2225 (5763 Metric) package or case.
  • Temperature Range: The temperature range for operating is from -55°C to 125°C.
