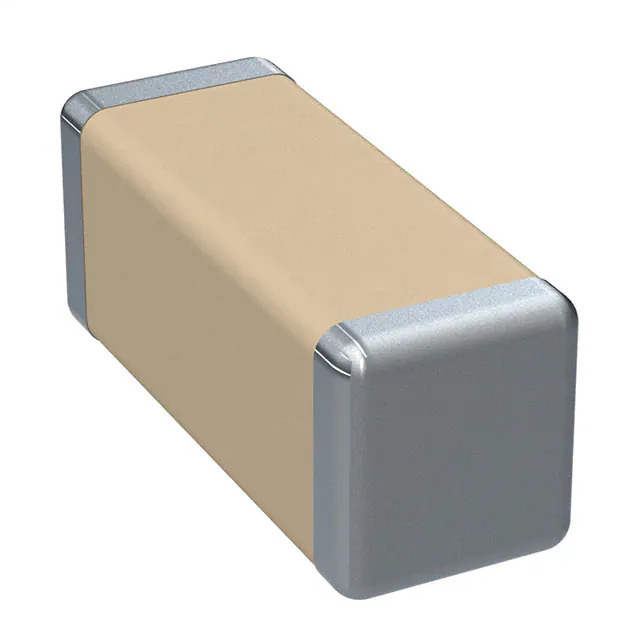

C1808C102KGRAC7800 Kemet
Same model may have multiple batches, images only for reference.

C1808C102KGRAC7800

Part No C1808C102KGRAC7800
Manufacturer Kemet
Catalog Ceramic Capacitors
Description CAP CER 1000PF 2KV X7R 1808
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Ceramic Capacitors
Mfr KEMET
Series SMD Comm X7R HV
Package Tape & Reel
Product Status Active
Capacitance 1000 pF
Tolerance ±10%
Voltage - Rated 2000V (2kV)
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features Low ESL, High Voltage
Ratings -
Applications General Purpose
Failure Rate -
Mounting Type Surface Mount, MLCC
Package / Case 1808 (4520 Metric)
Size / Dimension 0.185" L x 0.079" W (4.70mm x 2.00mm)
Height - Seated (Max) -
Thickness (Max) 0.069" (1.75mm)
Lead Spacing -
Lead Style -
Base Product Number C1808C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.24.0020
Win Source Part Number 1378097-C1808C102KGRAC7800
Ultra Librarian 3D Model Ultra Librarian C1808C102KGRAC7800 CAD Model

Description

The 1378097-C1808C102KGRAC7800 is a ceramic capacitor from KEMET's SMD Comm X7R HV series.

  • Capacitance: 1000 pF
  • Tolerance: ±10%
  • Voltage Rating: 2000V (2kV)
  • ESL: Low
  • Package Size: 1808 (4520 Metric)
  • Dimensions: 0.185" L x 0.079" W (4.70mm x 2.00mm)
  • Thickness: 0.069" (1.75mm)
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel
  • Applications: General-Purpose
  • Operating Temperature: -55°C to 125°C
  • Status: Active
  • REACH: Unaffected
