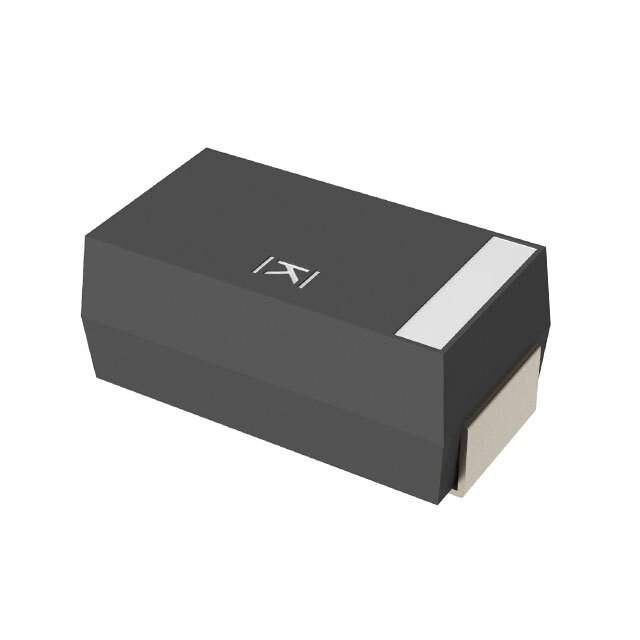

Same model may have multiple batches, images only for reference.

A700V476M006ATE025

Name: A700V476M006ATE025
Brand: Kemet
SKU: 552103
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	A700V476M006ATE025
Manufacturer	Kemet
Catalog	Aluminum - Polymer Capacitors
Description	ALUMINUM ORGANIC CAPACITORS
Datasheet	A700V476M006ATE025 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Kemet
Series	AO-Cap A700
Packaging	Reel - TR
Type	Polymer
Capacitance	47μF
Tolerance	±20%
Voltage Rating	6.3V
ESR (Equivalent Series Resistance)	25 mOhm
Operating Temperature Range	-55°C ~ 125°C
Ripple Current - High Frequency	3.3A @ 100kHz
Size	0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum)	0.079" (2.00mm)
Surface Mount Land Size	0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting	SMD
Package	2917 (7343 Metric)
Win Source Part Number	1134791-A700V476M006ATE025
Manufacturer Homepage	www.kemet.com
Popularity	Medium
Supply and Demand Status	Balance
Family Name	A700
Introduction Date	June 09, 2003
ECCN	EAR99
Country of Origin	China
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian A700V476M006ATE025 CAD Model

Description

The Kemet AO-Cap A700 is a polymer capacitor that comes in a 2917 (7343 Metric) package.

Capacitance: 47μF
Voltage Rating: 6.3V
Tolerance: ±20%
ESR (Equivalent Series Resistance): 25 mOhm
Ripple Current - High Frequency: 3.3A @ 100kHz
Surface Mount Land Size: 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum): 0.079" (2.00mm)
Suitable for: use in capacitors
