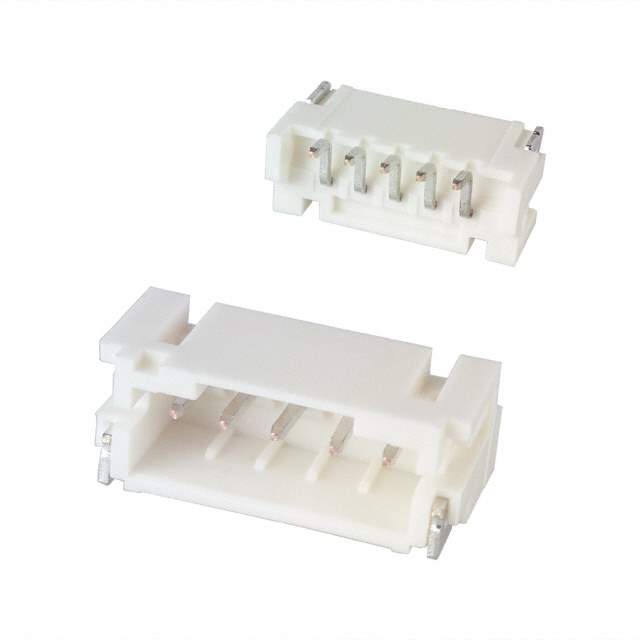

S5B-PH-SM3-TB

Name: S5B-PH-SM3-TB
Brand: JST Sales America Inc.
SKU: 807083
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	S5B-PH-SM3-TB
Manufacturer	JST Sales America Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 5POS 2MM
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	JST Sales America Inc.
Packaging	Reel
Part Status	Obsolete (End Of Life)
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	5
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Style	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.130" (3.30mm)
Insulation Height	0.217" (5.51mm)
Contact Shape	Square
Contact Finish - Mating	Tin-Lead
Contact Finish - Post	Tin-Lead
Contact Material	Brass
Insulation Material	Polyamide (PA46), Nylon 4/6
Features	Solder Retention
Temperature Range - Operating	-25°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	2A
Voltage Rating	100V
Manufacturer Pack Quantity	1,000
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	807083-S5B-PH-SM3-TB
Ultra Librarian 3D Model	Ultra Librarian S5B-PH-SM3-TB CAD Model

Alternative Products

Description

The S5B-PH-SM3-TB is a 5-position male pin header connector from JST Sales America Inc.

Application: Board to Cable/Wire
Pitch: 0.079" (2.00mm)
Features: Shrouded - 4 Wall
Insulation Material: Polyamide (PA46), Nylon 4/6
Voltage Rating: 100V
Current Rating: 2A
Temperature Range: -25°C to 85°C
Mounting Type: Surface Mount, Right Angle
Manufacturer Pack Quantity: 1,000
MSL Level: 1 (unlimited)
