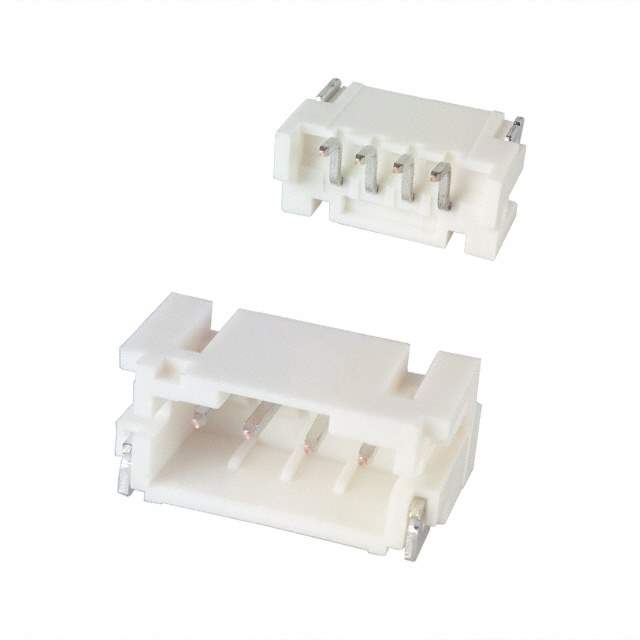

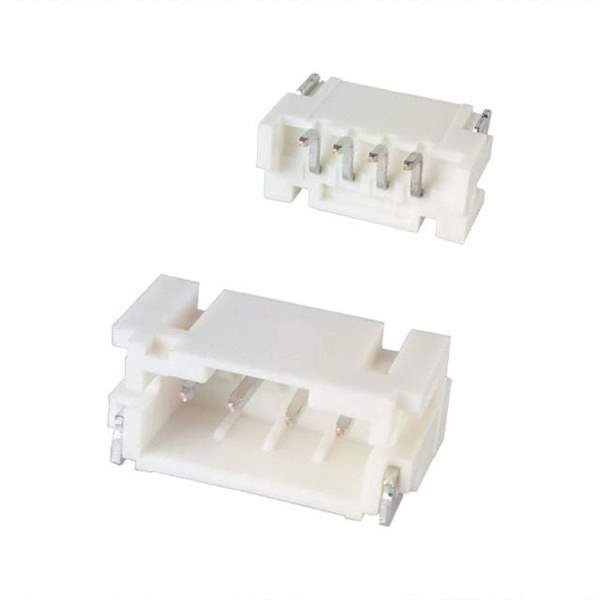

S4B-PH-SM4-TB(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

S4B-PH-SM4-TB(LF)(SN)

Part No S4B-PH-SM4-TB(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Description Conn Shrouded Header (4 Sides) HDR 4 POS 2mm Solder RA Side Entry SMD T/R / CONN HEADER PH SIDE 4POS 2MM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 4
Number of Positions Loaded All
Number of Rows 1
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Insulation Height 0.217" (5.51mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polyamide (PA6T), Nylon 6T
Features Solder Retention
Temperature Range - Operating -25°C to 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating 2A
Voltage Rating 100V
Mated Stacking Heights 5.5mm
Win Source Part Number 144071-S4B-PH-SM4-TB(LF)(SN)
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name PH
Introduction Date October 18, 2005
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian S4B-PH-SM4-TB(LF)(SN) CAD Model

Description

The 144071-S4B-PH-SM4-TB(LF)(SN) connector is a header connector with 4 positions.

  • Technology: solder retention technology
  • Voltage Rating: 100V
  • Mounting: surface mount and right angle mounting
  • Pitch: 0.079" (2.00mm)
  • Contact Material: square-shaped male pins with a contact finish of tin
  • Design: shrouded 4-wall design
  • Material: polyamide (PA6T) and nylon 6T
  • Temperature Range: -25°C to 85°C
  • Ideal for: electronic devices that require a compact and reliable connection
