Same model may have multiple batches, images only for reference.

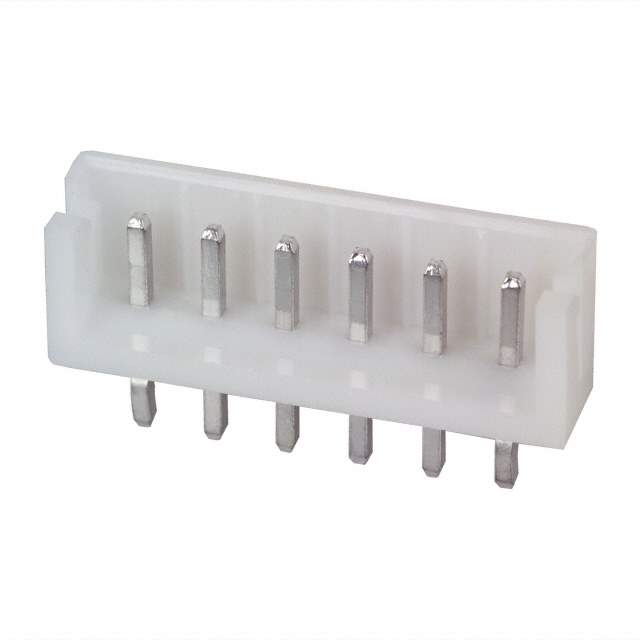

B6B-EH-A Real Image
Same model may have multiple batches, images only for reference.

B6B-EH-A

Part No B6B-EH-A
Manufacturer JST Sales America Inc.
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr JST Sales America Inc.
Series EH
Package Bulk
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 6
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Mounting Type Through Hole
Termination Press-Fit, Solder
Fastening Type Friction Lock
Contact Length - Mating 0.130" (3.30mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.236" (6.00mm)
Contact Shape Square
Contact Finish - Mating Tin-Lead
Contact Finish - Post Tin-Lead
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3A
Voltage Rating 250V
Mated Stacking Heights 8.1mm
Other Names 455-1018
Standard Package 1,000
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293301-B6B-EH-A
Ultra Librarian 3D Model Ultra Librarian B6B-EH-A CAD Model

Description

The JST Sales America Inc. 1293301-B6B-EH-A is a male pin header connector with a 6-position rectangular housing.

  • Manufacturer: JST Sales America Inc.
  • Positions: 6
  • Pitch: 0.098 inches (2.50mm)
  • Mounting: Through-hole
  • Fastening Type: Friction lock
  • Termination: Press-fit and solder
  • Shrouding: 3 walls
  • Mated Stacking Height: 8.1mm
  • Insulation Material: Polyamide (PA66) and nylon 6/6
  • Insulation Color: Natural
  • Voltage: 250V
  • Current Rating: 3A
  • RoHS Compliance: Non-compliant
  • ECCN: EAR99
  • Product Status: Obsolete
