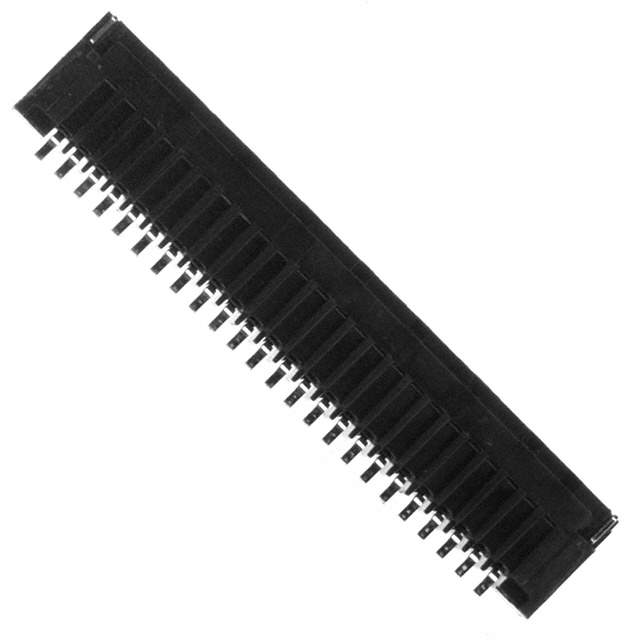

24FMN-SMT-A-TF(LF)(SN) Real Image
Same model may have multiple batches, images only for reference.

24FMN-SMT-A-TF(LF)(SN)

Part No 24FMN-SMT-A-TF(LF)(SN)
Manufacturer JST Sales America Inc.
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC TOP 24POS 1.00MM R/A / 24 Position FFC Connector Contacts, Top 0.039" (1.00mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer JST Sales America Inc.
Packaging Reel - TR
Flat Flex Type FFC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 24
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.118" (3.00mm)
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Polyamide (PA6T), Nylon 6T
Features Low Insertion Force (LIF)
Voltage Rating 50V
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Black
Base Product Number 24FMN-SM
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 455-1953-2,455-1953-1,24FMNSMTATFLFSN,455-1953-6
Standard Package 2,000
Win Source Part Number 1333365-24FMN-SMT-A-TF(LF)(SN)
Ultra Librarian 3D Model Ultra Librarian 24FMN-SMT-A-TF(LF)(SN) CAD Model

Description

The 1333365-24FMN-SMT-A-TF(LF)(SN) from JST Sales America Inc. is a FFC, FPC (Flat Flexible) Connector Assembly.

  • Manufacturer: JST Sales America Inc.
  • Feature: Low Insertion Force (LIF)
  • Positions: 24
  • Pitch: 0.039" (1.00mm)
  • Voltage Rating: 50V
  • Current Rating (amps): 0.5A
  • Temperature Range - Operating: -25°C to 85°C
  • RoHS Compliant: Yes
